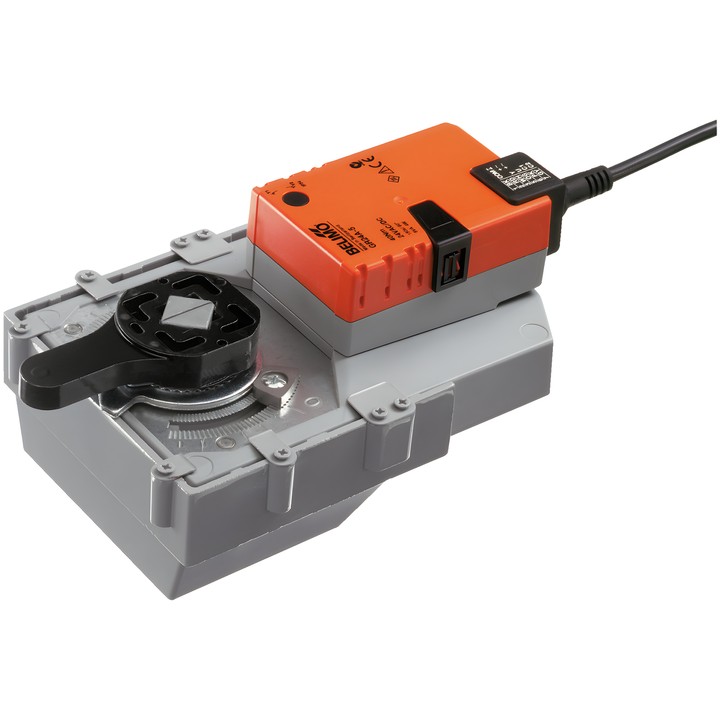

Belimo GRC24A-5 - rotary actuator for valves

Name: Belimo GRC24A-5 - rotary actuator for valves
Brand: Belimo
SKU: GRC24A-5
Price: 1595.53 PLN
Availability: BackOrder

Belimo

zł1,595.53

VAT included

zł1,297.18 tax excluded

Belimo GRC24A-5 rotary actuator for rotary valves and dampers. Torque 40 Nm, AC/DC 24 V supply, Close/Open control and running time 35 s / 90°.

Features a mechanical position indicator, rotation angle adjustment using mechanical stops, and manual override by push-button with the option to lock it.

Delivery in approx. 14 days

Belimo GRC24A-5 – rotary actuator

Electronic rotary actuator designed for rotary valves and dampers. Direct mounting uses an F05 flange; orientation relative to the valve can be selected in 90° increments.

Key features and specifications

Torque: 40 Nm; control: Close/Open.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Motor running time: 35 s / 90°.
Power consumption during operation: 8 W; at rest: 2.5 W; sizing power: 11 VA.
Power and control connection: 1 m cable, 3x 0.75 mm².
Manual override by push-button with the option to lock it; mechanical position indicator.
Adjustable rotation angle with mechanical end stops; overload protection and automatic stop when a stop is reached.
IEC/EN degree of protection: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].

The actuator is intended for stationary heating, ventilation and air conditioning installations. Installation may only be carried out by qualified personnel.
