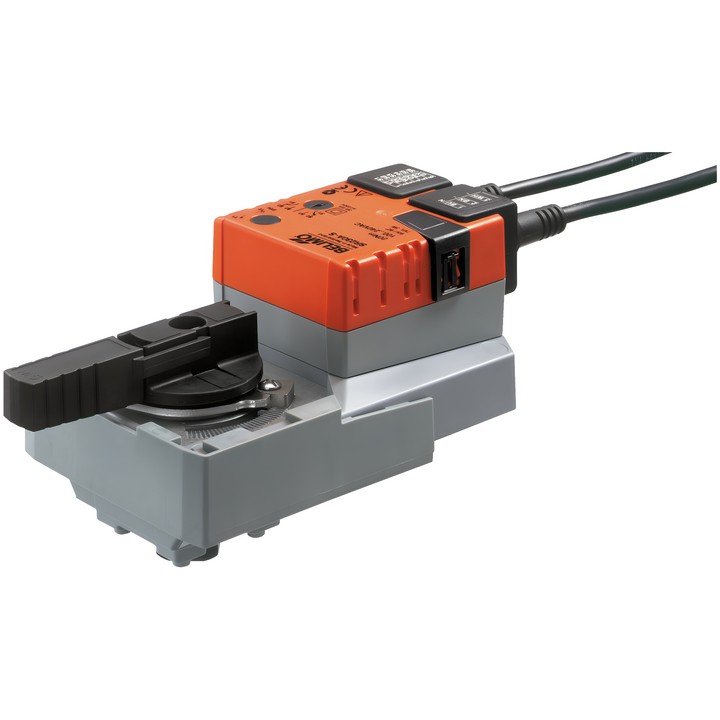

Belimo SR230A-S - rotary actuator for ball valves

Belimo SR230A-S - rotary actuator for ball valves

Belimo
zł894.26
VAT included
zł727.04 tax excluded

Belimo SR230A-S rotary actuator for ball valves, with a torque of 20 Nm and a nominal voltage of AC 100...240 V. Supports Open/Close and 3-point control; running time is 90 s / 90°.

Equipped with an adjustable auxiliary switch 1x SPDT (0...100%), push-button manual override and mechanical position indicator. IEC/EN protection rating: IP54.

Delivery in approx. 14 days
Share

Belimo SR230A-S rotary actuator

The SR230A-S is a rotary actuator for ball valves. It supports Open/Close or 3-point control and has an integrated, adjustable auxiliary switch.

Key specifications and features

  • Torque: 20 Nm; running time: 90 s / 90°.
  • Nominal voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Power consumption during operation: 3 W; at rest: 0.6 W; wire sizing power: 7 VA.
  • Auxiliary switch: 1x SPDT, adjustable over a range of 0...100%.
  • Power and control connection and auxiliary switch connection: separate 1 m cables, 3x 0.75 mm².
  • Push-button manual override with locking option; mechanical, plug-in position indicator.
  • Adjustable rotation angle with mechanical stops.
  • IEC/EN protection rating: IP54; IEC/EN protection class: II, reinforced insulation.

  • Brand
    Belimo
  • Reference
    SR230A-S
  • EAN13
    7630498114694

  • AC/DC voltage
    AC 100...240 V
  • Auxiliary switch connection
    Cable 1 m, 3x 0.75 mm²
  • Power consumption (running)
    3 W
  • Power consumption (holding)
    0.6 W
  • Rated power
    7 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Auxiliary contacts
    1x SPDT

Techniczna karta katalogowa

Download (1.18MB)

Instrukcja montażu

Download (630.56KB)

Techniczna karta katalogowa – SR230A-S

Download (1.19MB)

EU Declaration of Conformity – SR230A-S

Download (25.64KB)

Environmental Declaration – SR..

Download (72.79KB)
