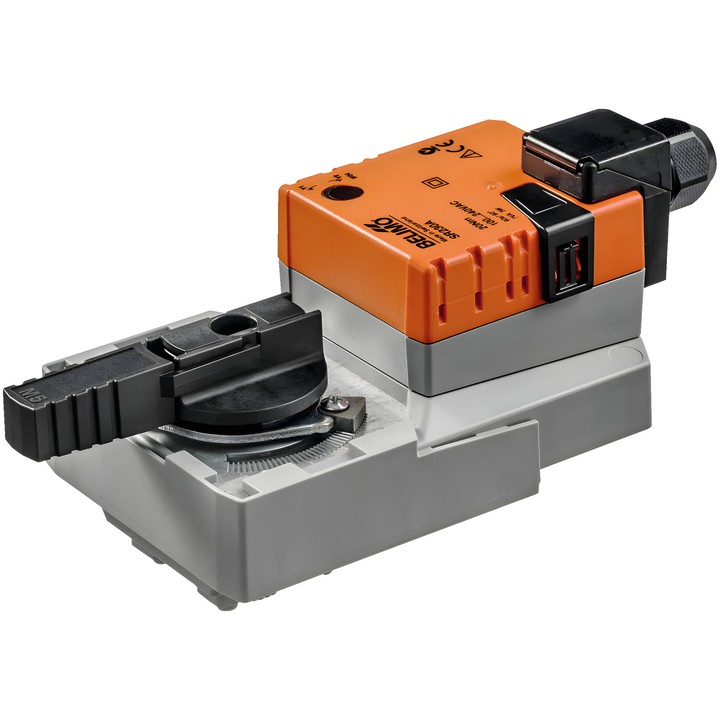

Belimo SR24A-SR-TP - rotary actuator for ball valves

Name: Belimo SR24A-SR-TP - rotary actuator for ball valves
Brand: Belimo
SKU: SR24A-SR-TP
Price: 996.85 PLN
Availability: BackOrder

Belimo

zł996.85

VAT included

zł810.45 tax excluded

Modulating rotary actuator for ball valves. Torque 20 Nm, AC/DC 24 V supply, 2...10 V control signal and 2...10 V position feedback signal.

Running time is 90 s / 90°. The actuator has a mechanical position indicator, adjustable rotation angle stops and manual override by push-button with locking option.

Delivery in approx. 14 days

Belimo SR24A-SR-TP

Modulating rotary actuator designed for ball valves. Position is determined by the Y control signal, while the U feedback voltage enables electrical readout of the valve position.

Key technical data

Torque: 20 Nm.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Y operating range: 2...10 V; U position feedback signal: 2...10 V.
Running time: 90 s / 90°.
Power consumption in operation: 2.5 W; at rest: 0.4 W; wire sizing power: 5 VA.
Power and control connection: 4 mm² terminals (cable ø4...10 mm, 4-core).
IEC/EN degree of protection: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
Manual override by push-button with locking option; mechanical, removable position indicator.
Adjustable rotation angle with mechanical end stops.

The actuator is mounted directly on the ball valve using a single central screw. The device is protected against overload and stops automatically when an end stop is reached.
