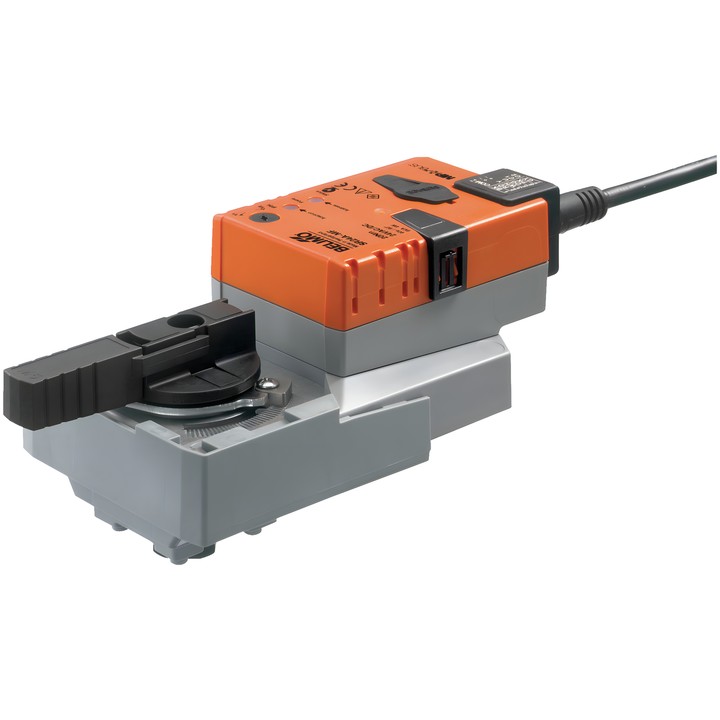

Belimo SRC24A-SR - rotary actuator for ball valves
Price:
zł1,116.54
VAT included
zł907.76 tax excluded
Modulating Belimo SRC24A-SR rotary actuator for ball valves. Torque 20 Nm, AC/DC 24 V supply, 2...10 V control range and running time 35 s / 90°.
Features a 2...10 V position feedback signal, push-button manual override and mechanical rotation angle stops. IEC/EN IP54 protection rating.
Belimo SRC24A-SR – rotary actuator
Modulating rotary actuator designed for ball valves. The Y control signal determines the actuator position, while the U measuring voltage enables electrical indication of the valve position.
Key features and parameters
- Torque: 20 Nm; nominal voltage: AC/DC 24 V, 50/60 Hz.
- Y control range: 2...10 V; U position feedback signal: 2...10 V.
- Running time: 35 s / 90°; positioning accuracy: ±5%.
- Power consumption during operation: 3.5 W; at rest: 1.5 W; power for cable sizing: 6 VA.
- Power and control connection: 1 m cable, 4x 0.75 mm².
- Push-button manual override with locking option; rotation angle adjustment using mechanical stops.
- Mechanical, removable position indicator; direct mounting on the ball valve using one central screw.
- IEC/EN IP54 protection rating; IEC/EN protection class III, Safety Extra-Low Voltage (SELV).
-
Brand
-
ReferenceSRC24A-SR
-
EAN137630498115004
-
AC/DC voltageAC/DC 24 V
-
Power consumption (running)3.5 W
-
Power consumption (holding)1.5 W
-
Rated power6 VA
-
Power supply control connectionCable 1 m, 4x 0.75 mm²
-
Control typeDC 2...10 V
-
Protection ratingIP54
-
NEMA protection ratingNEMA 2
-
Enclosure typeUL Enclosure Type 2
