Belimo TF230-SR - rotary actuator for dampers with fail-safe function

Belimo TF230-SR - rotary actuator for dampers with fail-safe function

Belimo
zł879.06
VAT included
zł714.68 tax excluded

Belimo TF230-SR is a rotary actuator for dampers with a fail-safe function. The motor torque is 2.5 Nm, the nominal voltage is AC 100...240 V, and control is provided by a 2...10 V signal.

If the power supply fails, the return spring moves the damper to the safety position. The motor running time is 150 s / 90°.

Delivery in approx. 14 days
Share

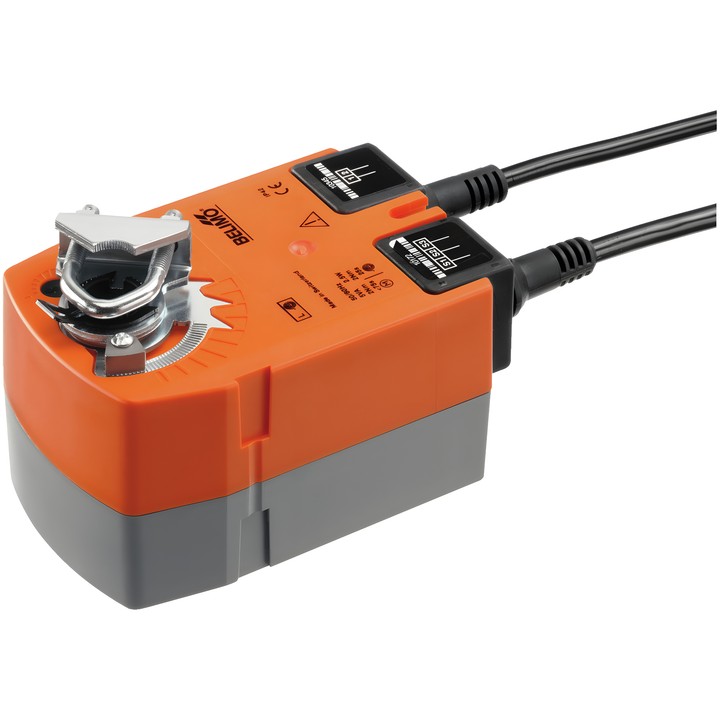

Belimo TF230-SR actuator

A modulating rotary actuator with a fail-safe function for regulating dampers in technical building systems. It is designed for air dampers with an area of up to approx. 0.5 m². The analogue Y signal positions the damper and simultaneously tensions the return spring; if the power supply is interrupted, the spring moves it to the safety position.

Key features and parameters

  • Motor torque: 2.5 Nm; fail-safe function torque: 2.5 Nm.
  • Nominal voltage: AC 100...240 V, 50/60 Hz.
  • Operating range Y: 2...10 V; position feedback signal U: 2...10 V.
  • Motor running time: 150 s / 90°; fail-safe function running time: <25 s / 90°.
  • Rotation angle: max. 95°, adjustable using the mechanical stop.
  • Universal shaft clamp: 6...12.7 mm; mechanical position indicator.
  • Power consumption during operation: 2.5 W; in the rest position: 2 W; sizing power for cable selection: 5 VA.
  • Power connection: 1 m cable, 2x 0.75 mm²; control connection: 1 m cable, 3x 0.75 mm².
  • Degree of protection: IP42; ambient temperature: -30...50°C [-22...122°F].
  • Motor direction is changed using the L/R switch; fail-safe direction is selected by L/R mounting. No manual override.

  • Brand
    Belimo
  • Reference
    TF230-SR
  • EAN13
    7630498115660

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    2 W
  • Rated power
    5 VA
  • Control type
    DC 2...10 V
  • Protection rating
    IP42
  • Manual override
    No
  • Running time (motor)
    150 s / 90°
  • Running time (safety function)
    ＜25 s
  • Power connection
    Cable 1 m, 2x 0.75 mm²
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    2.5 Nm
  • Direction of movement - motor
    Selectable using the L/R switch
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...12.7 mm
  • Direction of rotation (safety function)
    Selectable by mounting L/R
  • Control connection
    Cable 1 m, 3x 0.75 mm²
