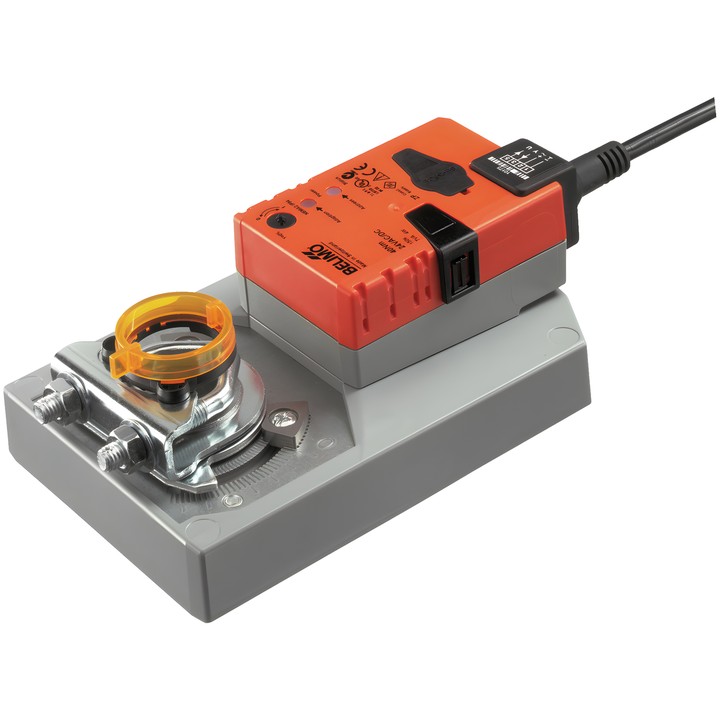

Belimo GM24A-MOD - rotary actuator for dampers

Belimo GM24A-MOD - rotary actuator for dampers

Belimo
zł1,560.70
VAT included
zł1,268.86 tax excluded

Belimo GM24A-MOD rotary actuator for dampers with a torque of 40 Nm, AC/DC 24 V supply and an operating time of 150 s / 90°. Supports BACnet MS/TP, Modbus RTU and MP-Bus communication.

Supports modulating and hybrid control, manual adjustment by push-button and mechanical limitation of the rotation angle. Protection rating: IP54.

Delivery in approx. 14 days
Share

Belimo GM24A-MOD – actuator for dampers

Communication-enabled rotary actuator designed to control dampers in building technical systems. It can operate with modulating, communication-based or hybrid control.

Key features and parameters

  • Motor torque: 40 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
  • Communication: BACnet MS/TP, Modbus RTU (factory setting) and MP-Bus.
  • Operating range Y: 2...10 V; adjustable operating range Y: 0.5...10 V.
  • Motor operating time: 150 s / 90°; adjustable operating time: 75...290 s.
  • Rotation angle: max. 95°, with adjustable mechanical stops on both sides.
  • Direction of movement selected using the 0/1 switch; manual adjustment by push-button with the option to lock it.
  • Universal shaft clamp for 12...26.7 mm; mechanical, removable position indicator.
  • Can be connected to a passive, active or switching-contact sensor and transmit its signal via the bus.
  • Power consumption during operation: 3.5 W; at rest: 1.6 W; for cable sizing: 5.5 VA.
  • Power and control connection: 1 m cable, 6x 0.75 mm².
  • IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    GM24A-MOD
  • EAN13
    7630498111679

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    3.5 W
  • Power consumption (holding)
    1.6 W
  • Rated power
    5.5 VA
  • Power supply control connection
    Cable 1 m, 6x 0.75 mm²
  • Control type
    BACnet MS/TP Modbus RTU MP-Bus DC 2...10 V DC 0.5...10 V Hybrid (communicating/analogue)
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Variable motor running time
    75...290 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    40 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 12...26.7 mm

Techniczna karta katalogowa

Download (1.7MB)

Instrukcja montażu

Download (546.95KB)

Techniczna karta katalogowa – GM24A-MOD

Download (1.71MB)

EU Declaration of Conformity – GM24A-MOD

Download (32.53KB)

Environmental Declaration – GM..

Download (72.3KB)
