Belimo 22DT-12P - duct and immersion temperature sensor

Belimo 22DT-12P - duct and immersion temperature sensor

Belimo
zł313.63
VAT included
zł254.98 tax excluded

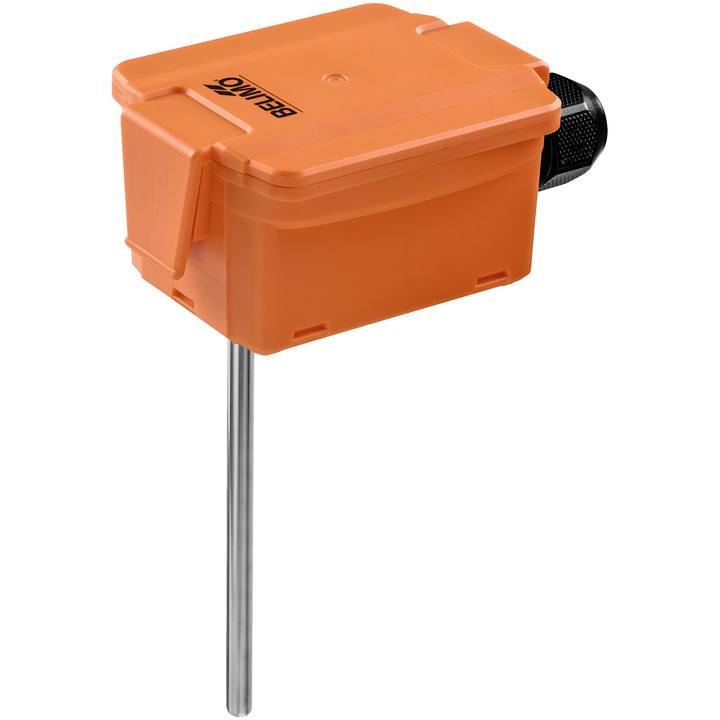

Active Belimo 22DT-12P temperature sensor for measuring temperature in ducts. When combined with a stainless steel or brass thermometer pocket, it can also be used in pipework.

AC/DC 24 V supply, with an output signal of 0...5 V or 0...10 V selectable by jumper. The probe is 200 mm long and 6 mm in diameter.

Delivery in approx. 14 days
Share

Belimo 22DT-12P temperature sensor

Active sensor for measuring temperature in ducts. Use in pipework requires a stainless steel or brass thermometer pocket.

Key features

  • Rated voltage: AC/DC 24 V.
  • Output signal: 0...5 V or 0...10 V, selectable by jumper; min. resistance 5 kΩ.
  • 8 selectable measuring ranges.
  • Measuring element based on Pt1000 class AA.
  • Probe length: 200 mm; probe diameter: 6 mm; probe material: V4A (1.4404).
  • Enclosure protection rating: IP65 / NEMA 4X.
  • Electrical connection: pluggable spring terminal block, max. 2.5 mm².

Measuring ranges selectable by jumper: S0 -50...50°C, S1 -10...120°C, S2 0...50°C, S3 0...250°C, S4 -15...35°C, S5 0...100°C, S6 -20...80°C, S7 0...160°C. The maximum measuring range does not define the permissible medium temperature; the medium temperature range specified in the datasheet is -50...160°C.

  • Brand
    Belimo
  • Reference
    22DT-12P
  • EAN13
    7630498117862

  • Electrical connection
    Terminals
  • Measured values
    Temperature
  • Output signal
    0...5 V 0...10 V
  • Probe length
    200 mm
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V adjustable via jumper
  • Output voltage range [Range]
    1 x 0...5 V, 0...10 V, min. resistance 5 kΩ

Techniczna karta katalogowa

Download (1.47MB)

Instrukcja montażu

Download (1.19MB)

Techniczna karta katalogowa – 22DT-12..

Download (1.47MB)

EU Declaration of Conformity – 22DT-12P

Download (39.94KB)

Environmental Declaration – ..DT..

Download (70.29KB)
In business since 2005
Over 20 years of experience
A trusted partner
Reliable service and customer trust
Technical support
Help with selecting and operating equipment
