Belimo GM24SR.36 - rotary actuator for dampers

Belimo GM24SR.36 - rotary actuator for dampers

Belimo
zł1,675.78
VAT included
zł1,362.42 tax excluded

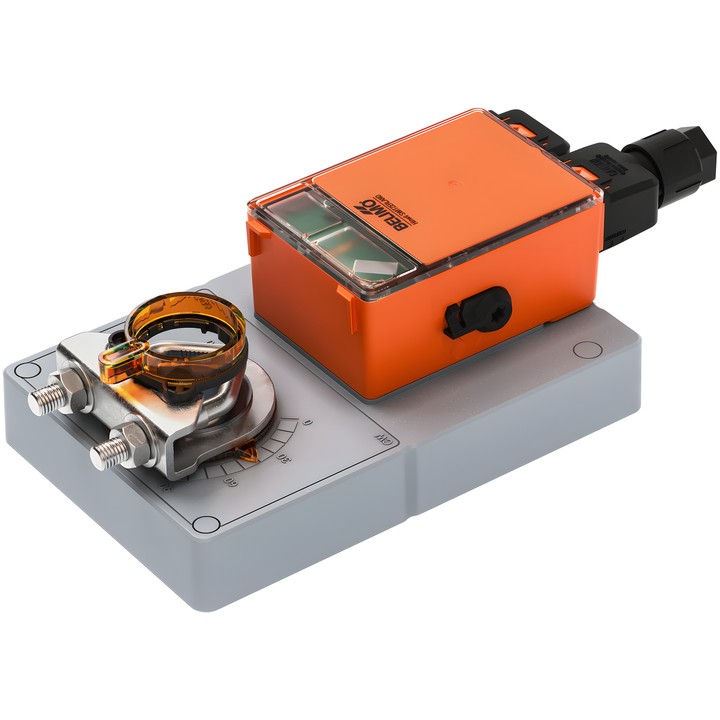

Belimo GM24SR.36 rotary actuator for dampers with a torque of 40 Nm, powered by AC/DC 24 V. Supports modulating, open/close and 3-point control, as well as MP-Bus communication.

Motor running time is 35 s / 90° and is adjustable within 35...150 s. The device has an IP54 protection rating, connection terminals and a reversible universal mounting clamp for 12...26.7 mm shafts.

Delivery in approx. 14 days
Share

Belimo GM24SR.36 actuator for dampers

The GM24SR.36 is a rotary actuator designed to position dampers in technical building systems. It can operate with analogue control or receive a digital signal via MP-Bus.

Key features and specifications

  • Torque: 40 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
  • Control: modulating, open/close, 3-point or communication via MP-Bus.
  • Operating range Y: 2...10 V; position feedback signal U: 2...10 V.
  • Motor running time: 35 s / 90°; adjustable running time: 35...150 s.
  • Rotation angle: max. 95°; electronic limitation on both sides using Belimo Assistant 2.
  • Manual adjustment using a lockable side lever.
  • Reversible universal mounting clamp for 12...26.7 mm shafts.
  • Removable spring terminals for electrical connection; IEC/EN protection rating IP54.
  • Power consumption during operation: 4 W; at rest: 0.3 W; sizing power: 8 VA.
  • Green LED indicating operating status and an NFC interface for configuration via Belimo Assistant 2.
  • Ambient operating temperature: -30...55°C [-22...131°F].

  • Brand
    Belimo
  • Reference
    GM24SR.36
  • EAN13
    7630498124198

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    4 W
  • Power consumption (holding)
    0.3 W
  • Rated power
    8 VA
  • Power supply control connection
    2.5 mm² [14 AWG] terminals (ø4...7.5 mm [ø0.16...0.29"], 4-core cable)
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP54
  • Manual override
    With side lever, lockable
  • Running time (motor)
    35 s / 90°
  • Variable motor running time
    35...150 s
  • Ambient temperature
    -30...55°C [-22...131°F]
  • Torque
    40 Nm
  • Direction of movement - motor
    Y = 0 V: left stop, right position
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 12...26.7 mm

Techniczna karta katalogowa

Download (3.41MB)

Instrukcja montażu

Download (1.55MB)

Techniczna karta katalogowa – GM24SR.36

Download (3.44MB)

EU Declaration of Conformity – GM24SR.36

Download (56.14KB)
