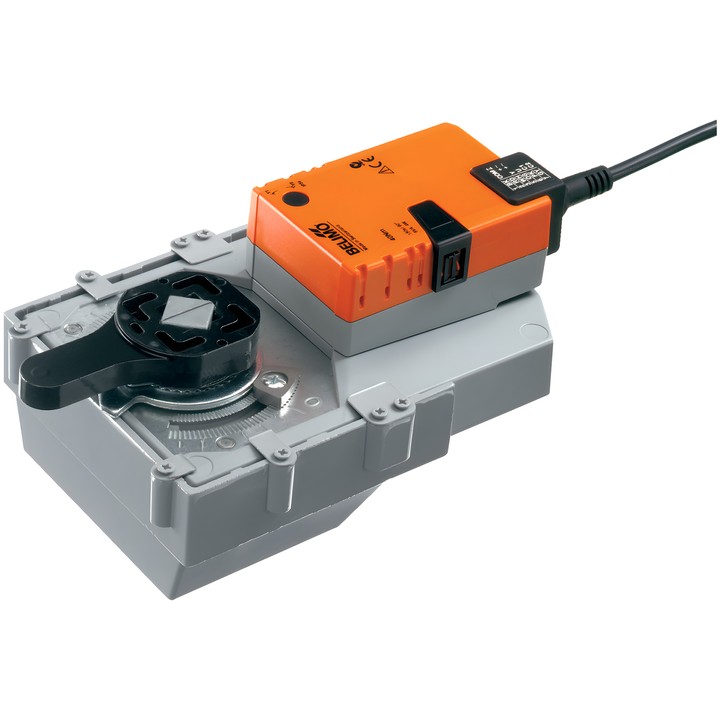

Belimo GR230A-5 - rotary actuator for valves

Belimo GR230A-5 rotary actuator

Model designed for rotary valves and dampers. Supports direct mounting using an F05 flange; the orientation relative to the valve can be selected in 90° increments.

Key features and specifications

• Torque: 40 Nm.
• Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
• Control: Open/Close; running time: 150 s / 90°.
• Power consumption during operation: 5 W; at rest: 2 W; for wire sizing: 9 VA.
• Power and control connection: 1 m cable, 3x 0.75 mm².
• Manual adjustment by push-button, with locking option.
• Rotation angle adjustment using mechanical end stops; integrated mechanical position indicator.
• Degree of protection IEC/EN: IP54; protection class IEC/EN: II, reinforced insulation.

The actuator is protected against overload and stops automatically when the end stop is reached. Parallel operation is possible, taking the load data into account.
