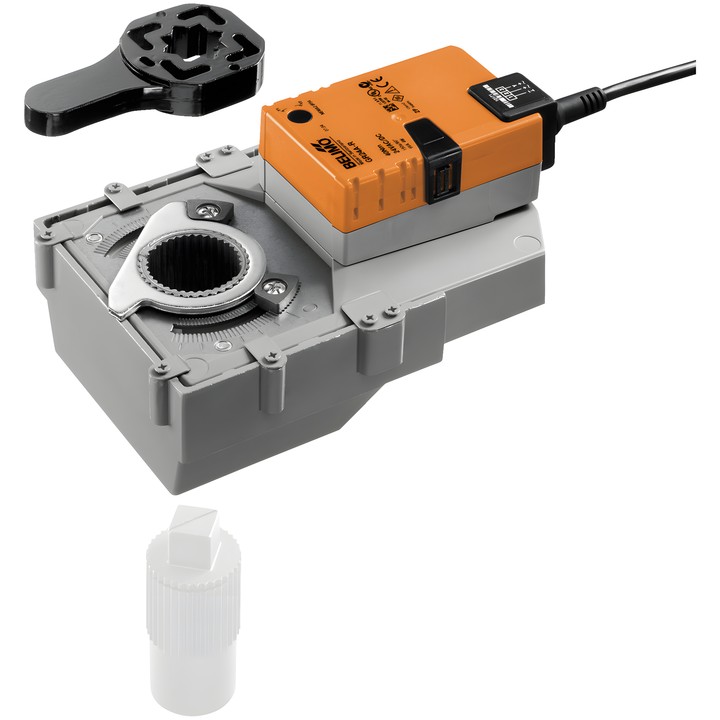

Belimo GR230A-R - rotary actuator for valves

Belimo GR230A-R - rotary actuator for valves

Belimo
zł1,341.01
VAT included
zł1,090.25 tax excluded

RetroFIT+ rotary actuator for rotary valves and dampers. Torque 40 Nm, power supply AC 100...240 V, Close/Open control and running time 150 s / 90°.

Fitted with an F05/F07 connection flange, manual adjustment by push-button with locking option, and mechanical position indication. Ingress protection rating IP54.

Delivery in approx. 14 days
Share

Belimo GR230A-R – RetroFIT+ rotary actuator

Actuator for rotary valves and dampers, designed for installation on an F05/F07 connection flange. Close/Open control; manual adjustment is performed using a push-button with a locking option.

Main features and technical data

  • Torque: 40 Nm.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Motor running time: 150 s / 90°.
  • Power consumption during operation: 5 W; in the idle position: 2 W; for wire sizing: 9 VA.
  • Power and control connection: Cable 1 m, 3x 0.75 mm².
  • Connection flange: F05/F07; mechanical stops allow the rotation angle to be adjusted.
  • Mechanical, integrated position indication.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: II, reinforced insulation.

The actuator is protected against overload and stops automatically when it reaches the stop. The adapter for fitting the valve stem is not included with the product.

  • Brand
    Belimo
  • Reference
    GR230A-R
  • EAN13
    7630498111785

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    5 W
  • Power consumption (holding)
    2 W
  • Rated power
    9 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Close/Open
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Torque
    40 Nm

Techniczna karta katalogowa

Download (1.19MB)

Instrukcja montażu

Download (284.46KB)

EU Declaration of Conformity – GR230A-R

Download (32.51KB)

Environmental Declaration – GR..

Download (72.47KB)
