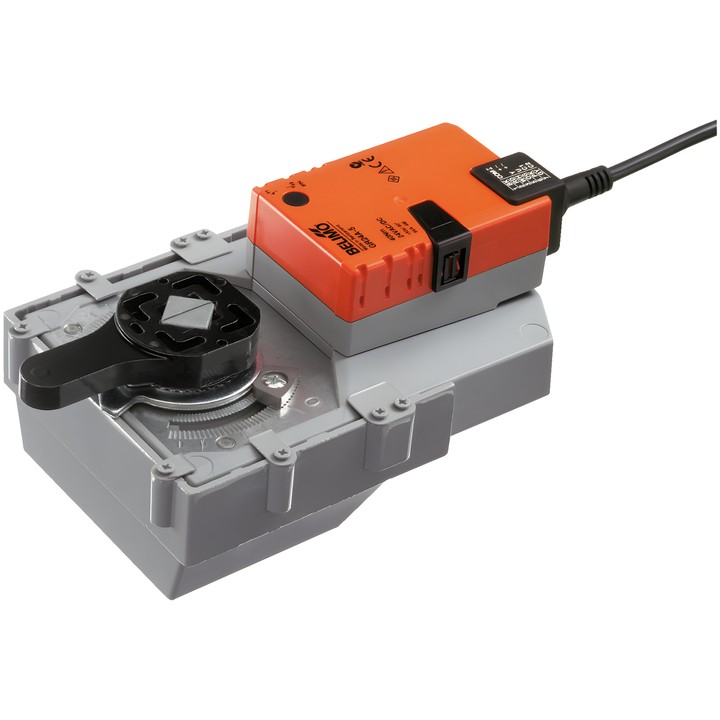

Belimo GR24A-7 - rotary actuator for dampers

Name: Belimo GR24A-7 - rotary actuator for dampers
Brand: Belimo
SKU: GR24A-7
Price: 1418.24 PLN
Availability: BackOrder

zł1,418.24

VAT included

zł1,153.04 tax excluded

Belimo GR24A-7 rotary actuator for dampers, with a torque of 40 Nm. AC/DC 24 V power supply, Open/Close control and an operating time of 150 s / 90°.

Equipped with a manual control button with locking option, mechanical rotation angle limiters and a position indicator. IP54 protection rating.

Delivery in approx. 14 days

Belimo GR24A-7 – rotary actuator for dampers

Electronic rotary actuator designed for direct mounting on a damper. The mounting position relative to the damper can be selected in 90° increments.

Torque: 40 Nm.
Rated voltage: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
Rated voltage range: AC 19.2...28.8 V / DC 19.2...28.8 V.
Control: Open/Close; operating time: 150 s / 90°.
Power consumption during operation: 4 W; at rest: 2 W; for wire sizing: 6 VA.
Power and control connection: 1 m cable, 3x 0.75 mm².
Manual adjustment using a button with locking option; rotation angle adjustment using mechanical limiters.
Mechanical, integrated position indicator.
Protection rating IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
Connection flange: F07.

The actuator is protected against overload and stops automatically when the end stop is reached. Limit switches are not required.
