Belimo TF24-SR - rotary actuator for dampers with safety function

Belimo TF24-SR - rotary actuator for dampers with safety function

Belimo
zł794.20
VAT included
zł645.69 tax excluded

Belimo TF24-SR is a rotary actuator for dampers with a safety function, featuring a torque of 2.5 Nm and a rated voltage of AC/DC 24 V. It supports analogue control and MP-Bus communication.

The motor running time is 150 s / 90°, and the spring returns the actuator to the safety position when the power supply is interrupted.

Delivery in approx. 14 days
Share

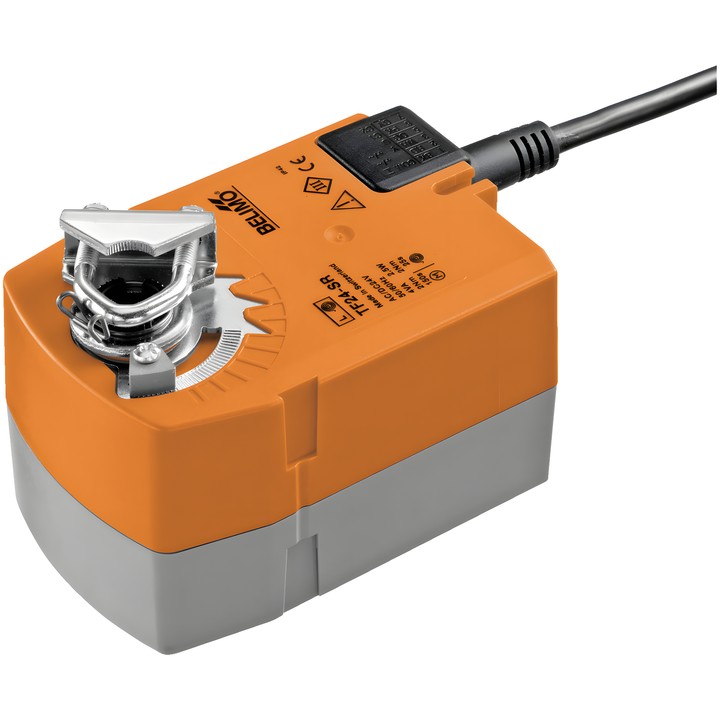

Belimo TF24-SR – actuator for dampers

A rotary actuator with a safety function, designed to position dampers in technical building systems. During operation, it tensions the return spring, which moves the damper to the safety position when the power supply is interrupted.

Key features and specifications

  • Torque of the motor and safety function: 2.5 Nm.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Modulating control; available modes: Open/close, 3-point and MP-Bus communication.
  • Operating range Y: 2...10 V; position feedback signal U: 2...10 V.
  • Motor running time: 150 s / 90°; adjustable motor running time: 75...300 s.
  • Safety function running time: <25 s @ -20...50°C, <60 s @ -30°C.
  • Rotation angle: max. 95°; mechanical angle stop and position indicator.
  • Universal clamp for shaft 6...12.7 mm.
  • Power and control cable: 1 m, 4x 0.75 mm².
  • Power consumption during operation: 1.3 W; in the rest position: 0.6 W; for cable sizing: 2.6 VA.
  • Degree of protection: IP42; ambient temperature: -30...50°C [-22...122°F].
  • Manual adjustment is not possible.

  • Brand
    Belimo
  • Reference
    TF24-SR
  • EAN13
    7630498115714

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1.3 W
  • Power consumption (holding)
    0.6 W
  • Rated power
    2.6 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP42
  • Manual override
    No
  • Running time (motor)
    150 s / 90°
  • Running time (safety function)
    ＜25 s
  • Variable motor running time
    75...300 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    2.5 Nm
  • Direction of movement - motor
    Selectable using the L/R switch
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...12.7 mm
  • Direction of rotation (safety function)
    Selectable by mounting L/R

Techniczna karta katalogowa

Download (1.8MB)

Instrukcja montażu

Download (836.66KB)

Techniczna karta katalogowa – TF24-SR

Download (1.8MB)

EU Declaration of Conformity – TF24-SR

Download (32.45KB)

Environmental Declaration – TF..

Download (72.14KB)
In business since 2005
Over 20 years of experience
A trusted partner
Reliable service and customer trust
Technical support
Help with selecting and operating equipment
