Belimo LH24A-SR100 - modulating linear actuator

Belimo LH24A-SR100 - modulating linear actuator

Belimo
zł642.01
VAT included
zł521.96 tax excluded

Belimo LH24A-SR100 linear actuator for regulating dampers and slide gates in building technical systems. Force 150 N, AC/DC 24 V supply, 2...10 V control and 2...10 V feedback signal.

Stroke 100 mm, operating time 150 s / 100 mm and IP54 protection rating.

Delivery in approx. 14 days
Share

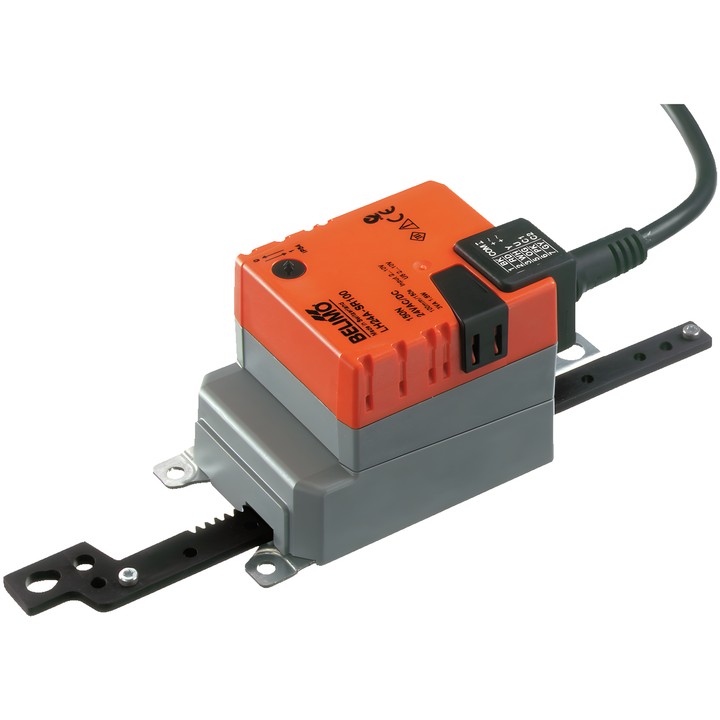

Belimo LH24A-SR100 linear actuator

Modulating linear actuator for regulating dampers and slide gates in building technical systems. According to the documentation, it is intended for air dampers with an area of up to approx. 1 m².

Key features

  • Actuating force: 150 N.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Operating range of control signal Y: 2...10 V; position feedback signal U: 2...10 V.
  • Stroke: 100 mm; maximum stroke length 100 mm, fixed setting.
  • Motor operating time: 150 s / 100 mm.
  • Power consumption during operation: 1.5 W; in rest position: 0.5 W; for wire sizing: 3 VA.
  • Direction of movement selected by switch; manual adjustment by push-button with locking facility.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

The actuator is protected against overload and stops automatically when the end stop is reached.

  • Brand
    Belimo
  • Reference
    LH24A-SR100
  • EAN13
    7630498112119

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1.5 W
  • Power consumption (holding)
    0.5 W
  • Rated power
    3 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    150 N
  • Manual override
    Push-button, with locking option
  • Stroke
    100 mm
  • Running time (motor)
    150 s / 100 mm
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Direction of movement - motor
    Selectable by switch

Techniczna karta katalogowa

Download (1.13MB)

Instrukcja montażu

Download (420.1KB)

EU Declaration of Conformity – LH24A-SR100

Download (32.8KB)

Environmental Declaration – LH..100..

Download (71.96KB)
In business since 2005
Over 20 years of experience
A trusted partner
Reliable service and customer trust
Technical support
Help with selecting and operating equipment
