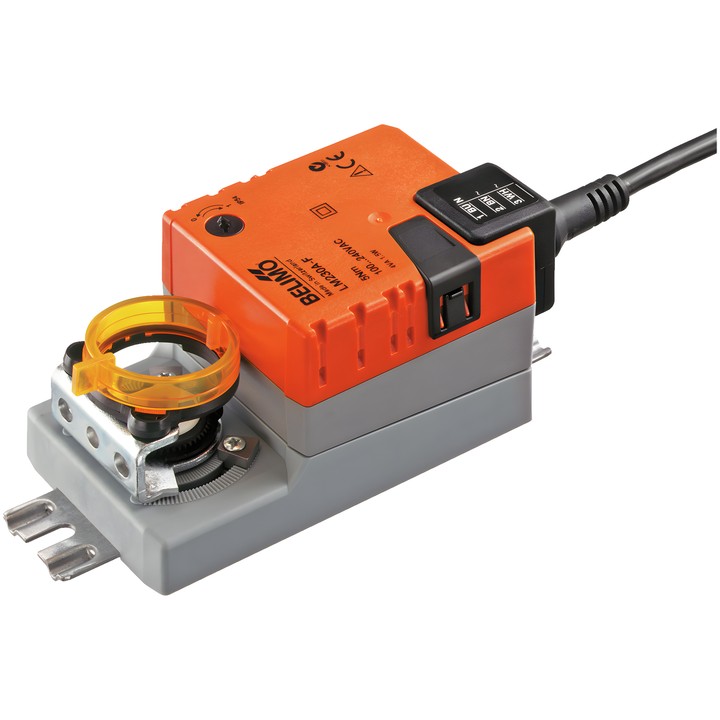

Belimo LM230A-F – damper actuator

Actuator designed for controlling dampers in building technical systems. According to the technical datasheet, it is suitable for air dampers with an area of up to approximately 1 m².

Key features and specifications

• Torque: 5 Nm.
• Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
• Control: Open/Close, 3-point.
• Motor running time: 150 s / 90°; rotation angle: max. 95°.
• Direction of rotation selected using switch 0 (rotation to the left) / 1 (rotation to the right).
• Mechanical connection: 8x8 mm form-fit connection.
• Manual override by push-button with the option to lock it; adjustable mechanical rotation angle stops on both sides.
• Mechanical, removable position indicator.
• Power consumption during operation: 1.5 W; at rest: 0.5 W; sizing power: 3.5 VA.
• Power and control connection: 1 m cable, 3x 0.75 mm².
• IEC/EN degree of protection: IP54; IEC/EN protection class: II, reinforced insulation.
• Ambient temperature: -30...50°C [-22...122°F].
