Belimo LM230ASR-TP - actuator for dampers with analogue control

Belimo LM230ASR-TP - actuator for dampers with analogue control

Belimo
zł743.94
VAT included
zł604.83 tax excluded

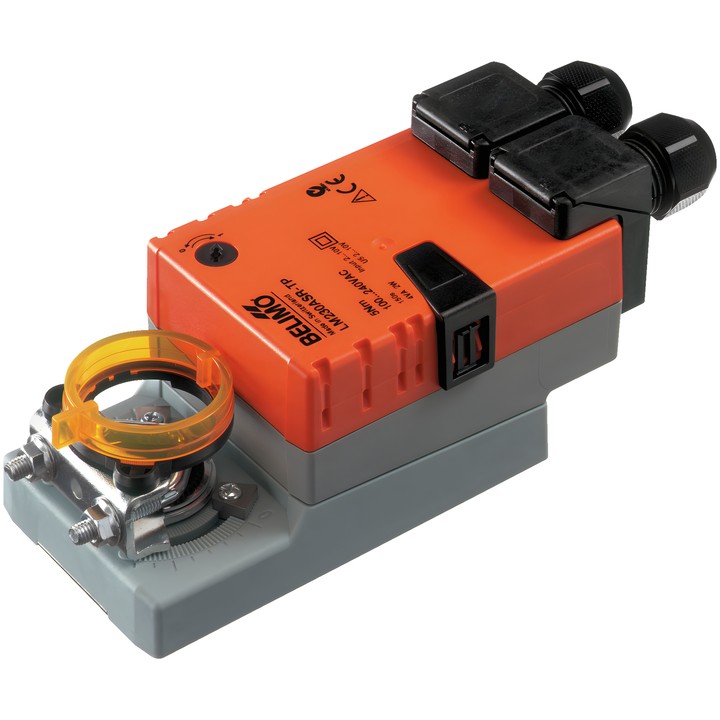

Belimo LM230ASR-TP damper actuator with a torque of 5 Nm, AC 100...240 V power supply and 2...10 V modulating control. Running time is 150 s / 90°.

The model has a 2...10 V position feedback signal, a universal 6...20 mm shaft clamp and IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo LM230ASR-TP – damper actuator

A modulating actuator designed to position dampers in building services systems. According to the technical data sheet, it is intended for air dampers with an area of up to approx. 1 m². The Y control signal determines the actuator position, while the U measuring voltage enables electrical readout of the damper position.

Key features and parameters

  • Motor torque: 5 Nm; rated voltage: AC 100...240 V, 50/60 Hz.
  • Modulating control: 2...10 V; position feedback signal: 2...10 V.
  • Motor running time: 150 s / 90°; rotation angle: max. 95°, with adjustable mechanical stops on both sides.
  • Power consumption during operation: 2 W; in standby position: 1 W; sizing power: 4 VA.
  • Direction of movement selected by a 0/1 switch; manual adjustment by push-button with locking option.
  • Universal 6...20 mm shaft clamp, mechanical position indicator and electrical connections via terminals.
  • IEC/EN IP54 protection rating; IEC/EN protection class II, reinforced insulation; ambient temperature -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    LM230ASR-TP
  • EAN13
    7630498112201

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    2 W
  • Power consumption (holding)
    1 W
  • Rated power
    4 VA
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Power connection
    Terminals 4 mm² (cable ø4...10 mm, 2-core)
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    5 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...20 mm
  • Control connection
    Terminals 4 mm² (cable ø4...10 mm, 4-core)

Techniczna karta katalogowa

Download (1.75MB)

Instrukcja montażu

Download (203.36KB)

EU Declaration of Conformity – LM230ASR-TP

Download (32.8KB)

Environmental Declaration – LM..

Download (72.46KB)
In business since 2005
Over 20 years of experience
A trusted partner
Reliable service and customer trust
Technical support
Help with selecting and operating equipment
