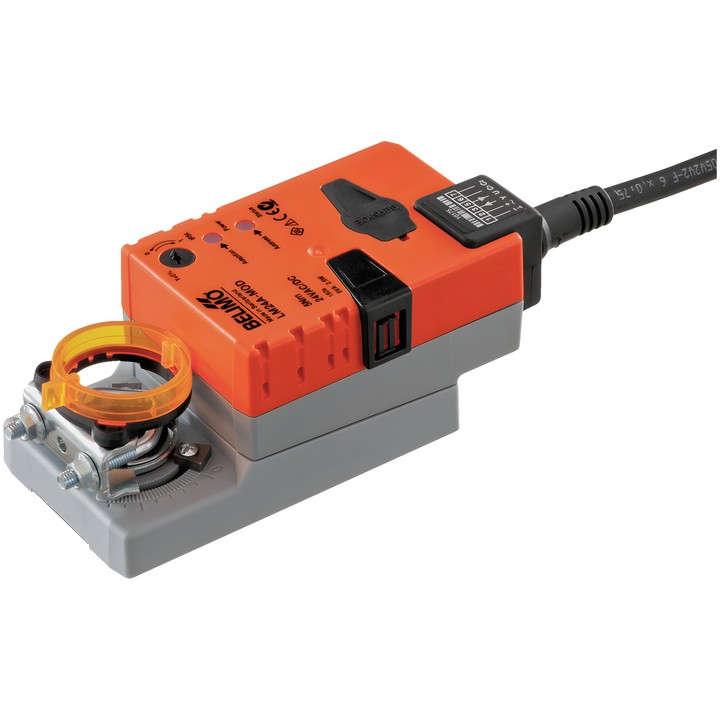

Belimo LM24A-MOD - damper actuator

Belimo LM24A-MOD - damper actuator

Belimo
zł833.85
VAT included
zł677.93 tax excluded

Belimo LM24A-MOD communication-capable damper actuator with a torque of 5 Nm, powered by AC/DC 24 V. Supports BACnet MS/TP, Modbus RTU and MP-Bus, as well as analogue control.

Running time is 150 s / 90°, and the protection rating is IP54. The actuator has a universal 6...20 mm shaft clamp and a button for manual adjustment.

Delivery in approx. 14 days
Share

Belimo LM24A-MOD – damper actuator

Communication-capable rotary actuator for controlling dampers in technical building systems. Designed for air dampers with an area of up to approx. 1 m². Enables communication, analogue and hybrid control.

Main features and specifications

  • Motor torque: 5 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
  • Communication: BACnet MS/TP, Modbus RTU (factory setting) and MP-Bus.
  • Y operating range: 2...10 V, adjustable to 0.5...10 V; U feedback signal: 2...10 V.
  • Motor running time: 150 s / 90°; adjustable within 35...150 s.
  • Rotation angle: max. 95°, with the option of limiting movement on both sides using mechanical stops.
  • Direction of rotation selected by a 0/1 switch; manual adjustment by button, with locking option.
  • Universal 6...20 mm shaft clamp; mechanical position indicator.
  • Can be connected to a passive, active or switching-contact sensor and transmit its signal to the bus.
  • Power consumption during operation: 2.5 W; in standby: 1.3 W; power rating for cable sizing: 5 VA.
  • Power and control connection: 1 m cable, 6x 0.75 mm².
  • IEC/EN protection rating: IP54; ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    LM24A-MOD
  • EAN13
    7630498112263

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    1.3 W
  • Rated power
    5 VA
  • Power supply control connection
    Cable 1 m, 6x 0.75 mm²
  • Control type
    BACnet MS/TP Modbus RTU MP-Bus DC 2...10 V DC 0.5...10 V Hybrid (communicating/analogue)
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Variable motor running time
    35...150 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    5 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...20 mm

Techniczna karta katalogowa

Download (1.69MB)

Instrukcja montażu

Download (656.48KB)

Techniczna karta katalogowa – LM24A-MOD

Download (1.69MB)

EU Declaration of Conformity – LM24A-MOD

Download (32.52KB)

Environmental Declaration – LM..

Download (72.44KB)
