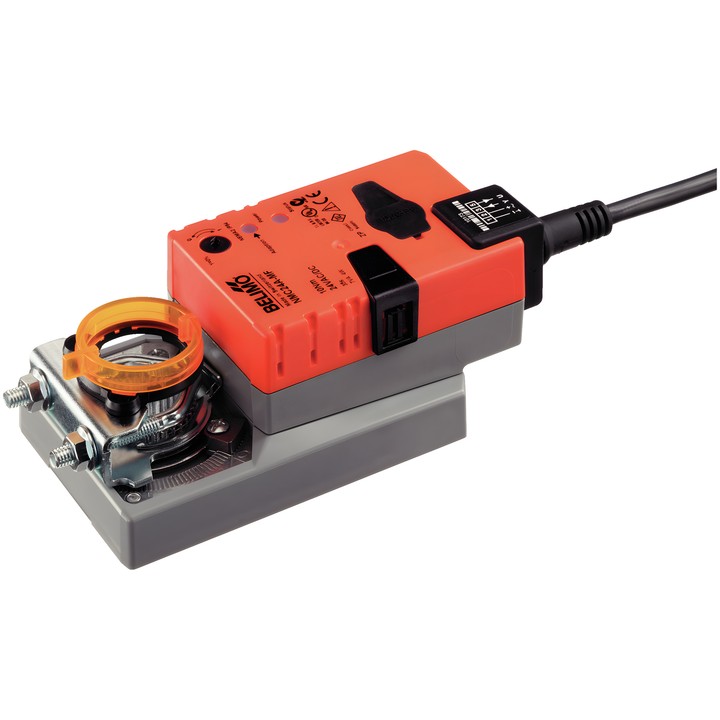

Belimo NMC24A-MP - damper actuator

Belimo NMC24A-MP - damper actuator

Belimo
zł921.49
VAT included
zł749.18 tax excluded

Communicating damper actuator with a torque of 10 Nm, AC/DC 24 V supply and MP-Bus communication. Motor running time is 35 s / 90°.

Supports 2...10 V analogue control and transmission of the signal from a connected sensor via MP-Bus. Features a universal shaft clamp for 8...26.7 mm shafts and manual adjustment by push-button.

Delivery in approx. 14 days
Share

Belimo NMC24A-MP – damper actuator

Communicating actuator designed to position dampers in technical building systems. It can operate with an analogue control signal Y or receive a digital control signal via MP-Bus. It allows a passive or active sensor, or a switching contact, to be connected and its signal to be transmitted to the higher-level system via MP-Bus.

Main features and specifications

  • Torque: 10 Nm; damper size: up to approx. 2 m².
  • Supply: AC/DC 24 V, 50/60 Hz; power consumption: 4 W during operation and 1.5 W at rest.
  • Modulating control and MP-Bus communication; Y operating range: 2...10 V, position feedback signal U: 2...10 V.
  • Motor running time: 35 s / 90°; adjustable running time: 20...75 s.
  • Rotation angle: max. 95°, with the option of limiting both sides using mechanical stops.
  • Direction of movement selected by 0/1 switch; manual adjustment by push-button with locking option.
  • Shaft mounting: universal clamp 8...26.7 mm; power and control connection: 1 m cable, 4x 0.75 mm².
  • IEC/EN degree of protection: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).

  • Brand
    Belimo
  • Reference
    NMC24A-MP
  • EAN13
    7630498113253

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    4 W
  • Power consumption (holding)
    1.5 W
  • Rated power
    7 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    35 s / 90°
  • Variable motor running time
    20...75 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    10 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 8...26.7 mm

Techniczna karta katalogowa

Download (1.97MB)

Instrukcja montażu

Download (536.23KB)

Techniczna karta katalogowa – NMC24A-MP

Download (1.98MB)

EU Declaration of Conformity – NMC24A-MP

Download (32.77KB)

Environmental Declaration – NM..

Download (72.38KB)
