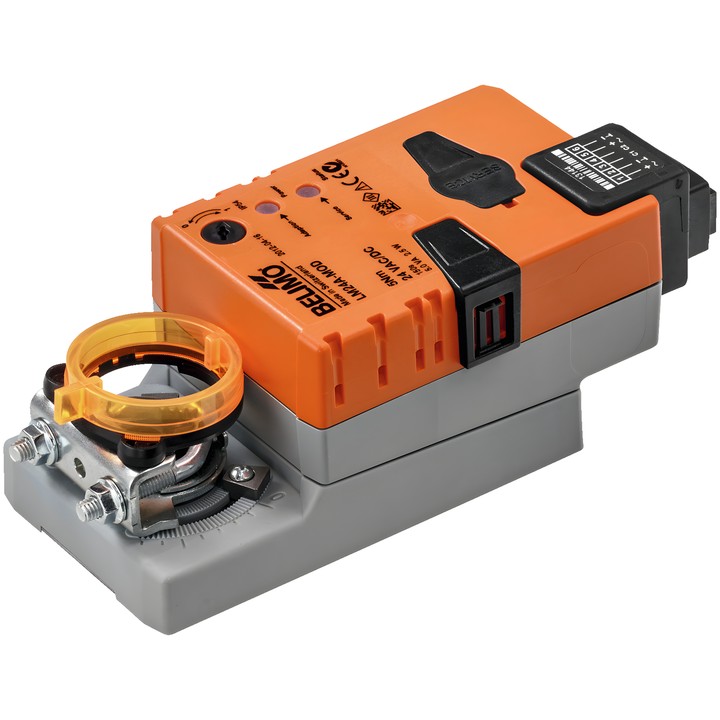

Belimo LM24A-MOD-J6 - 5 Nm damper actuator

Belimo LM24A-MOD-J6 - 5 Nm damper actuator

Belimo
zł1,603.92
VAT included
zł1,304.00 tax excluded

Belimo LM24A-MOD-J6 communication-capable damper actuator with a torque of 5 Nm, powered by AC/DC 24 V. It supports BACnet MS/TP and Modbus RTU and has an RJ12 plug socket.

The motor running time is 150 s / 90°, and the adjustable running time range is 35...150 s. The actuator features a universal clamp 6...20 mm and manual override by push-button with locking option.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo LM24A-MOD-J6 – damper actuator

Communication-capable rotary actuator designed to position dampers in technical building systems. The integrated interface receives a digital control signal and transmits the current device status. Damper size: up to approx. 1 m².

Key features and specifications

  • Motor torque: 5 Nm.
  • Rated voltage: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
  • Communication: BACnet MS/TP or Modbus RTU (factory setting).
  • Motor running time: 150 s / 90°; adjustable running time: 35...150 s.
  • Angle of rotation: max. 95°; limited on both sides by adjustable mechanical stops.
  • Motor direction selected by 0/1 switch.
  • Manual override by push-button with locking option.
  • Mechanical connection: universal clamp 6...20 mm; mechanical, plug-in position indicator.
  • Power and control connection: RJ12 plug socket.
  • Power consumption during operation: 2.5 W; in standby position: 1.3 W; for wire sizing: 5 VA.
  • Degree of protection IEC/EN: IP40; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

Device parameters can be modified using Belimo Assistant 2. The setting range adaptation can be started manually; during adaptation, both mechanical end stops are detected.

  • Brand
    Belimo
  • Reference
    LM24A-MOD-J6

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    1.3 W
  • Rated power
    5 VA
  • Power supply control connection
    RJ12 socket
  • Control type
    BACnet MS/TP Modbus RTU
  • Protection rating
    IP40
  • NEMA protection rating
    NEMA 1
  • Enclosure type
    UL Enclosure Type 1
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Variable motor running time
    35...150 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    5 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...20 mm

Techniczna karta katalogowa

Download (1.71MB)

Instrukcja montażu

Download (656.5KB)

Techniczna karta katalogowa – LM24A-MOD-J6

Download (1.72MB)

Environmental Declaration – LM..

Download (72.46KB)
