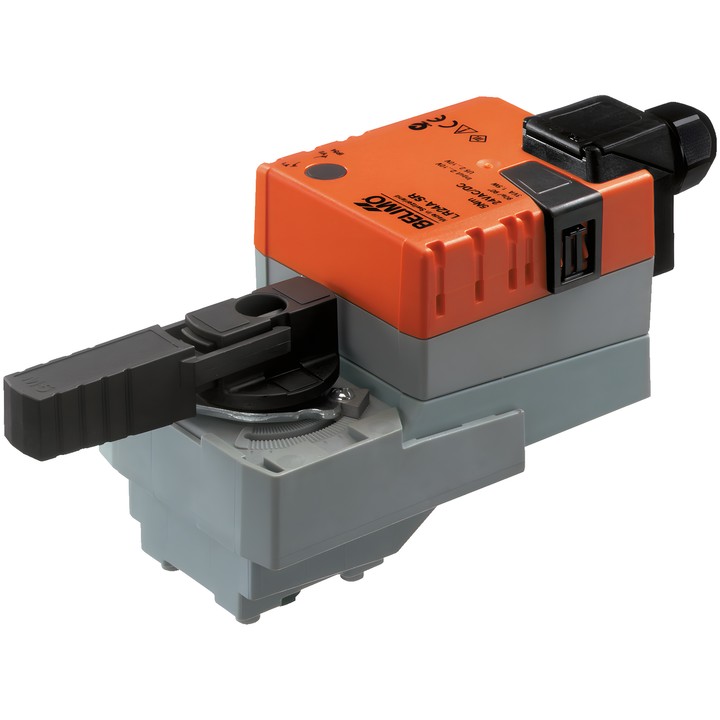

Belimo LR24A-MP-TP - rotary actuator for ball valves

Name: Belimo LR24A-MP-TP - rotary actuator for ball valves
Brand: Belimo
SKU: LR24A-MP-TP
Price: 1453.86 PLN
Availability: OutOfStock

Belimo

zł1,453.86

VAT included

zł1,182.00 tax excluded

Communicating rotary actuator for ball valves with a torque of 5 Nm, powered by AC/DC 24 V. Supports 2...10 V modulating control and MP-Bus communication.

Operating time is 90 s / 90° (adjustable 35...150 s). The actuator has a 2...10 V position feedback signal, manual push-button operation and IP54 protection rating.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo LR24A-MP-TP actuator

Communicating rotary actuator designed for ball valves. It can operate with an analogue Y control signal or receive a digital control signal via MP-Bus. It can also convert the signal from a connected sensor for transmission via MP-Bus.

Main features and specifications

Motor torque: 5 Nm.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Y operating range: 2...10 V; U position feedback signal: 2...10 V.
Communication: MP-Bus; maximum number of nodes: 8.
Motor operating time: 90 s / 90°; adjustable range: 35...150 s.
Power consumption during operation: 2.5 W; in standby position: 1.3 W; for wire sizing: 5 VA.
Power and control connection: 4 mm² terminals (ø4...10 mm cable, 4-core).
Manual push-button operation with locking option; mechanical rotation angle limiters and position indicator.
Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).

When first powered on, the actuator adapts the operating range and feedback signal to the mechanical setting range. Individual parameters can be changed using Belimo Assistant 2.
