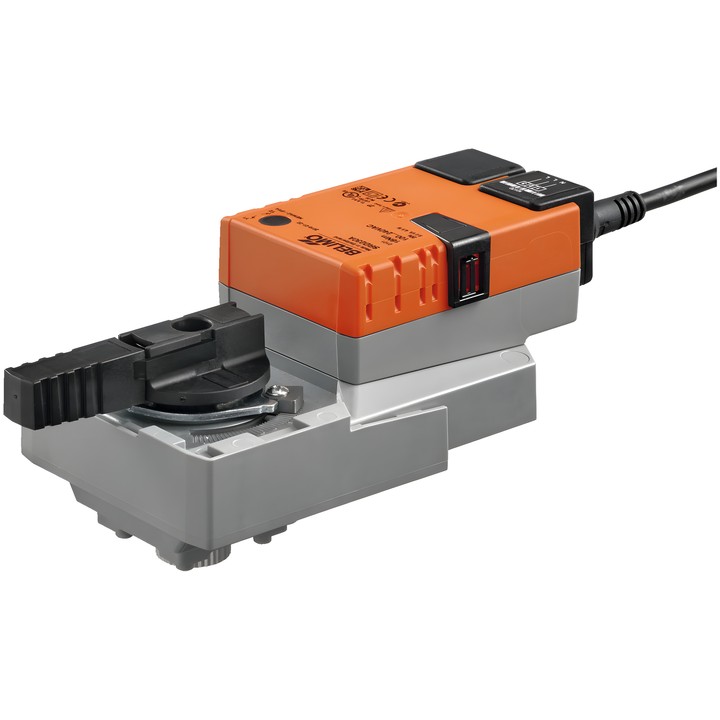

Belimo SRD230A - rotary actuator for ball valves

Name: Belimo SRD230A - rotary actuator for ball valves
Brand: Belimo
SKU: SRD230A
Price: 1143.79 PLN
Availability: BackOrder

Belimo

zł1,143.79

VAT included

zł929.91 tax excluded

Belimo SRD230A rotary actuator for ball valves, with a torque of 16 Nm. AC 100...240 V supply, Close/Open or 3-point control, running time 20 s / 90°.

Features manual override by push-button, mechanical adjustment of the rotation angle and a position indicator. IP54 protection rating.

Delivery in approx. 14 days

Belimo SRD230A – actuator for ball valves

Electronic rotary actuator mounted directly on the ball valve using a single central screw. The mounting position relative to the valve can be selected in 90° increments.

Key features and specifications

Motor torque: 16 Nm.
Nominal voltage: AC 100...240 V; frequency: 50/60 Hz.
Control: Close/Open, 3-point; running time: 20 s / 90°.
Power consumption during operation: 4.5 W; in the rest position: 1 W; sizing power: 8 VA.
Power and control connection: 1 m cable, 3x 0.75 mm².
Manual override by push-button, with option to lock; mechanical position indicator.
Adjustable rotation angle with mechanical stops. Overload protection and automatic stop when a stop is reached.
IEC/EN protection rating: IP54; IEC/EN protection class: II, reinforced insulation.
Ambient temperature: -30...50°C.

Installation may only be carried out by authorised specialists. Caution: mains voltage.
