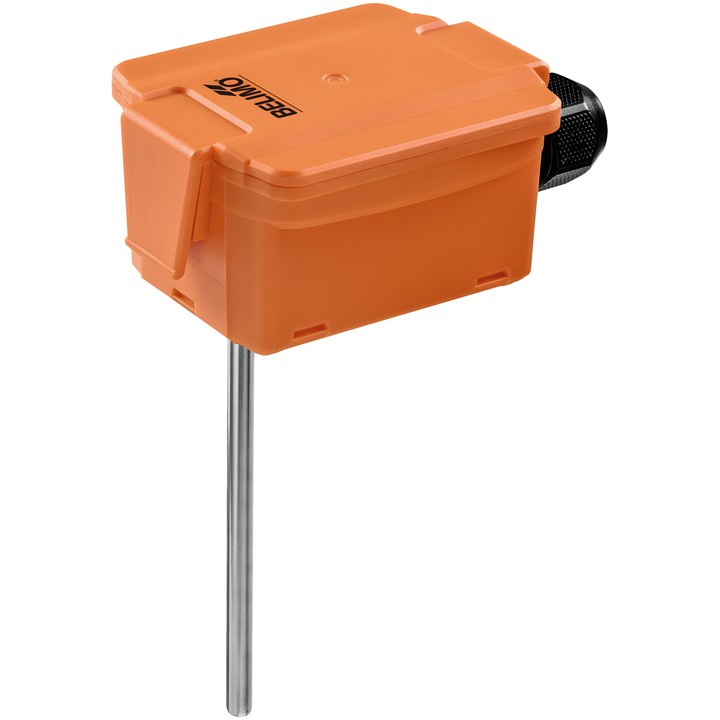

Belimo 22DT-12L – temperature sensor

Active sensor for measuring temperature in ducts. With a suitable stainless steel or brass thermowell, it can also be used in pipe installations.

Key features

  • Measured value: temperature; sensing element based on Pt1000 class AA.
  • Probe length: 100 mm; probe diameter: 6 mm; probe material: V4A (1.4404).
  • Nominal voltage: AC/DC 24 V.
  • Voltage output: 1 x 0...5 V, 0...10 V; min. resistance 5 kΩ. Signal 0...5/10 V selectable by jumper.
  • 8 selectable measuring ranges: S0 -50...50°C, S1 -10...120°C, S2 0...50°C, S3 0...250°C, S4 -15...35°C, S5 0...100°C, S6 -20...80°C, S7 0...160°C.
  • Temperature measurement accuracy: ±0.5°C @ 21°C for range settings S2 and S4.
  • Enclosure protection rating: IP65 / NEMA 4X.
  • Electrical connection: removable terminal block with spring terminals, max. 2.5 mm².

The maximum measuring range does not indicate the permissible medium temperature. Medium temperature according to the technical data sheet: -50...160°C.

  • Brand
    Belimo
  • Reference
    22DT-12L
  • EAN13
    7630498101069

  • Electrical connection
    Terminals
  • Measured values
    Temperature
  • Output signal
    0...5 V 0...10 V
  • Probe length
    100 mm
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V adjustable via jumper
  • Output voltage range [Range]
    1 x 0...5 V, 0...10 V, min. resistance 5 kΩ
