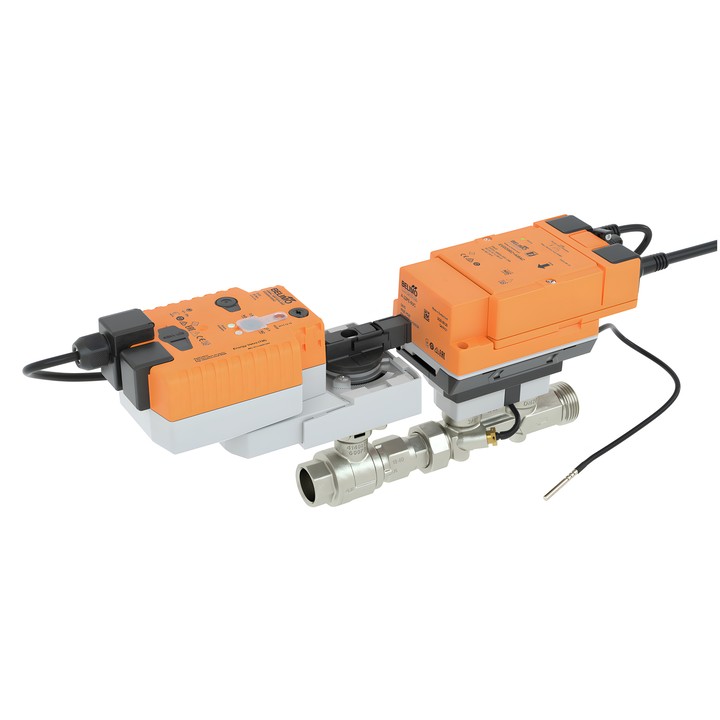

Belimo EV032R2+KBAC - DN 32 2-way Energy Valve control valve

Belimo Energy Valve EV032R2+KBAC

2-way control valve with a safety function, flow sensor and thermal energy meter. Enables control of flow, power, position or differential pressure, and monitoring of power and energy in closed water systems.

Key features and parameters

• DN 32, PN 25; internal and external threads Rp 1 1/4", G 1 1/2".
• V'nom 1.67 l/s (6 m³/h); V'max adjustment range 25...100% V'nom.
• Medium: water or water with a maximum of 60% vol. glycol; medium temperature -10...120°C [14...248°F].
• Differential pressure ∆pmax 350 kPa; closing pressure ∆ps 1400 kPa.
• Power supply AC/DC 24 V; power consumption during operation 15 W, at rest 6.5 W.
• Modulating, communication or hybrid control; Y signal range 2...10 V.
• Communication: BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus, Cloud. Integrated web server and NFC interface for configuration using Belimo Assistant 2.
• Safety function in the event of power failure; repositioning time 35 s / 90°. Manual repositioning using a button.
• Ultrasonic flow measurement, glycol concentration monitoring, integrated delta T manager and data logging for 13 months.
• IEC/EN IP54 degree of protection; IEC/EN protection class III, Protective Extra-Low Voltage (PELV).
