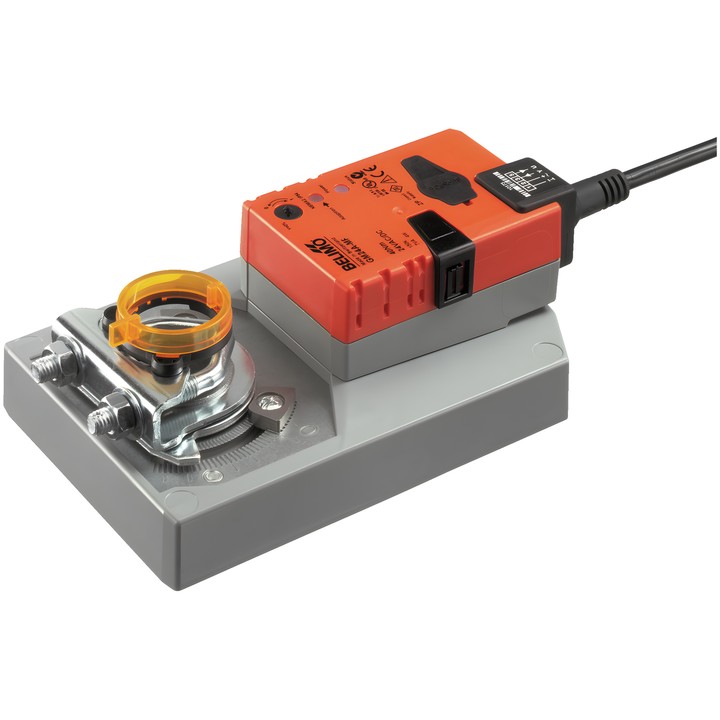

Belimo GM24A-MF - 40 Nm damper actuator

Belimo GM24A-MF - 40 Nm damper actuator

Belimo
zł2,841.30
VAT included
zł2,310.00 tax excluded

Configurable actuator for dampers in technical building systems. Torque 40 Nm, AC/DC 24 V supply and 2...10 V modulating control.

Motor running time is 150 s / 90° and can be set within a range of 75...290 s. The actuator has manual push-button operation with a locking option.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo GM24A-MF – damper actuator

Configurable actuator designed to position dampers in technical building systems. According to the technical data sheet, it is intended for air dampers with an area of up to approx. 8 m².

Key features

  • Motor torque: 40 Nm.
  • Nominal voltage: AC/DC 24 V; nominal voltage frequency: 50/60 Hz.
  • Modulating control: 2...10 V; position feedback signal: 2...10 V.
  • Motor running time: 150 s / 90°; adjustable range: 75...290 s.
  • Rotation angle: max. 95°, with the option of limiting both sides using mechanical stops.
  • Reversible universal mounting clamp for a shaft of 12...26.7 mm.
  • Direction of movement changed using a 0/1 switch; manual push-button operation with a locking option.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • Power consumption during operation: 4.5 W; at rest: 1.5 W; sizing power: 7 VA.
  • IEC/EN degree of protection: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

Device parameters can be modified using Belimo Assistant 2 or ZTH EU. The actuator supports setting range adaptation and synchronisation; it is protected against overload and stops automatically when the end position is reached.

  • Brand
    Belimo
  • Reference
    GM24A-MF
  • EAN13
    7630498111662

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    4.5 W
  • Power consumption (holding)
    1.5 W
  • Rated power
    7 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Variable motor running time
    75...290 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    40 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 12...26.7 mm
