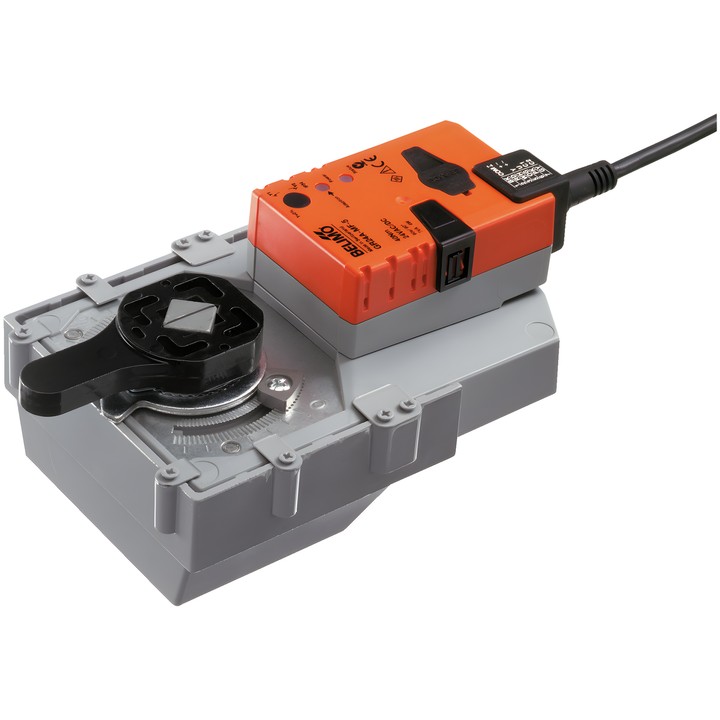

Belimo GR24A-MP-5 - rotary actuator for valves

Name: Belimo GR24A-MP-5 - rotary actuator for valves
Brand: Belimo
SKU: GR24A-MP-5
Price: 1860.17 PLN
Availability: BackOrder

Belimo

zł1,860.17

VAT included

zł1,512.33 tax excluded

Communicating rotary actuator for ball valves and dampers. Torque 40 Nm, rated voltage AC/DC 24 V, modulating control 2...10 V and communication via MP-Bus.

Motor running time is 90 s / 90° (adjustable 75...270 s). The actuator features manual push-button operation, mechanical angle-of-rotation adjustment and IP54 protection.

Delivery in approx. 14 days

Belimo GR24A-MP-5

Communicating rotary actuator designed for ball valves and dampers. It can operate with an analogue control signal Y or receive a digital control signal via MP-Bus. It allows a sensor to be connected and its signal to be transmitted to the higher-level system via MP-Bus.

Key features and specifications

Motor torque: 40 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
Modulating control: operating range Y 2...10 V; position feedback signal U 2...10 V. The ranges can be configured.
Communication: MP-Bus, max. 8 nodes.
Motor running time: 90 s / 90°; adjustable running time: 75...270 s.
Power consumption during operation: 4 W; at rest: 1.5 W; power for cable sizing: 7 VA.
Power and control connection: 1 m cable, 4x 0.75 mm².
Manual push-button operation with locking option; mechanical angle-of-rotation stops and integrated position indicator.
Connecting flange: F05; IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).

Setpoint range adaptation takes place automatically when power is first switched on; it can also be started using the button. Device parameters can be changed using Belimo Assistant 2.
