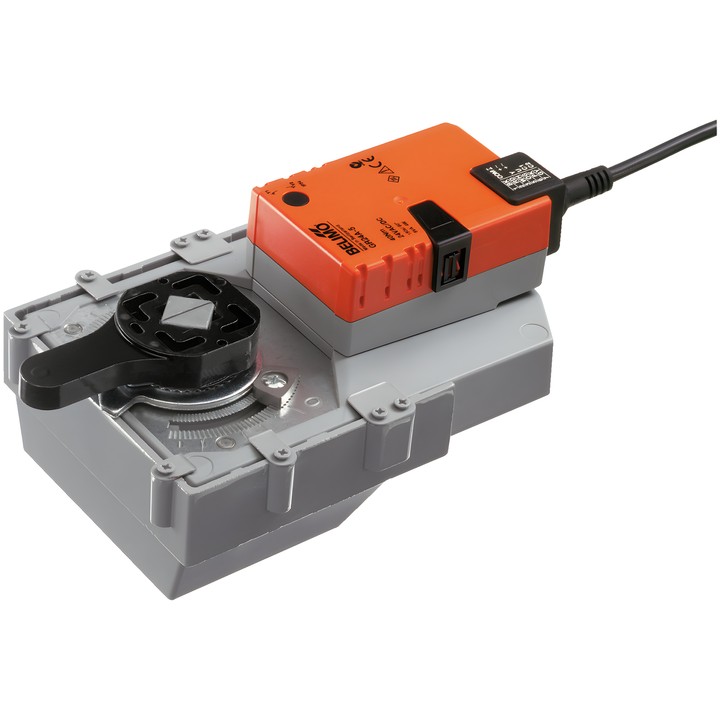

Belimo GRC230A-5 - rotary actuator for valves

Belimo GRC230A-5 - rotary actuator for valves

Belimo
zł1,595.53
VAT included
zł1,297.18 tax excluded

Belimo GRC230A-5 rotary actuator for rotary valves and dampers. Torque 40 Nm, power supply AC 100...240 V, Open/Close control and operating time 35 s / 90°.

Delivery in approx. 14 days
Share

Belimo GRC230A-5 rotary actuator

Actuator designed for rotary valves and dampers. Enables direct mounting using an F05 flange.

Key features

  • Torque: 40 Nm.
  • Nominal voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Control: Open/Close; operating time: 35 s / 90°.
  • Power consumption during operation: 6 W; in standby: 1 W; sizing power: 11 VA.
  • Power and control connection: 1 m cable, 3x 0.75 mm².
  • Manual adjustment using a push-button with lock option.
  • Mechanical position indicator and adjustment of the rotation angle using mechanical stops.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: II, reinforced insulation.

  • Brand
    Belimo
  • Reference
    GRC230A-5
  • EAN13
    7630498111860

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    6 W
  • Power consumption (holding)
    1 W
  • Rated power
    11 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Close/Open
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2

Techniczna karta katalogowa

Download (1.33MB)

Instrukcja montażu

Download (570.52KB)

EU Declaration of Conformity – GRC230A-5

Download (32.53KB)

Environmental Declaration – GR..

Download (72.48KB)
