Belimo LH24A-SR200 - modulating linear actuator

Belimo LH24A-SR200 - modulating linear actuator

Belimo
zł659.11
VAT included
zł535.86 tax excluded

Belimo LH24A-SR200 linear actuator for regulating dampers and gates in building services installations. Force 150 N, AC/DC 24 V supply, 2...10 V control and 2...10 V position feedback signal.

Stroke 200 mm, travel time 150 s / 100 mm and IP54 protection rating.

Delivery in approx. 14 days
Share

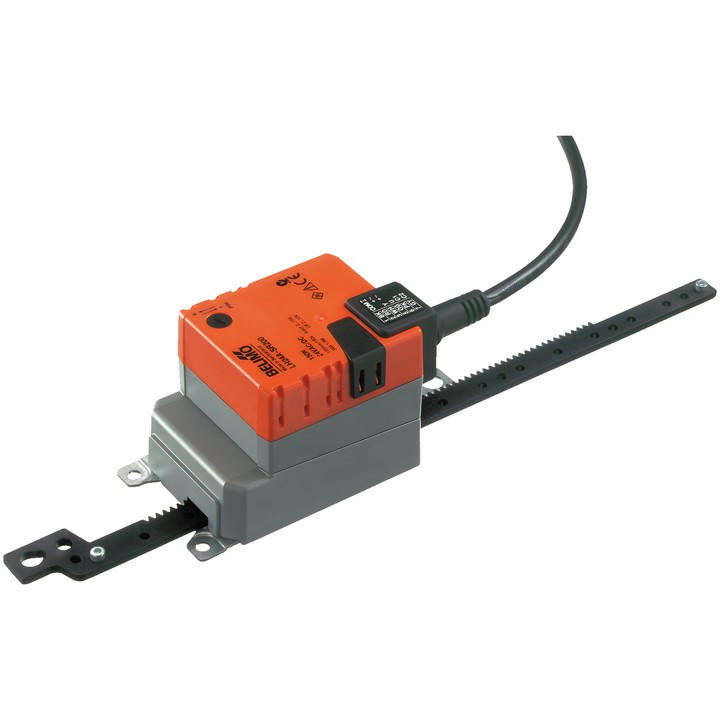

Belimo LH24A-SR200 linear actuator

Modulating linear actuator for regulating dampers and gates in building services installations. According to the documentation, it is intended for air dampers with an area of up to approx. 1 m².

Key specifications

  • Actuating force: 150 N.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Operating range of control signal Y: 2...10 V; position feedback signal U: 2...10 V.
  • Stroke: 200 mm; maximum stroke length 200 mm, fixed setting.
  • Motor travel time: 150 s / 100 mm.
  • Power consumption during operation: 1.5 W; at rest: 0.5 W; for wire sizing: 3 VA.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • Motor direction selected by switch; manual adjustment by push-button with locking option.
  • IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

The actuator is protected against overload and stops automatically when the end position is reached.

  • Brand
    Belimo
  • Reference
    LH24A-SR200
  • EAN13
    7630498112126

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1.5 W
  • Power consumption (holding)
    0.5 W
  • Rated power
    3 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    150 N
  • Manual override
    Push-button, with locking option
  • Stroke
    200 mm
  • Running time (motor)
    150 s / 100 mm
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Direction of movement - motor
    Selectable by switch

Techniczna karta katalogowa

Download (820.01KB)

Instrukcja montażu

Download (420.1KB)

EU Declaration of Conformity – LH24A-SR200

Download (32.8KB)

Environmental Declaration – LH..200..

Download (71.94KB)
In business since 2005
Over 20 years of experience
A trusted partner
Reliable service and customer trust
Technical support
Help with selecting and operating equipment
