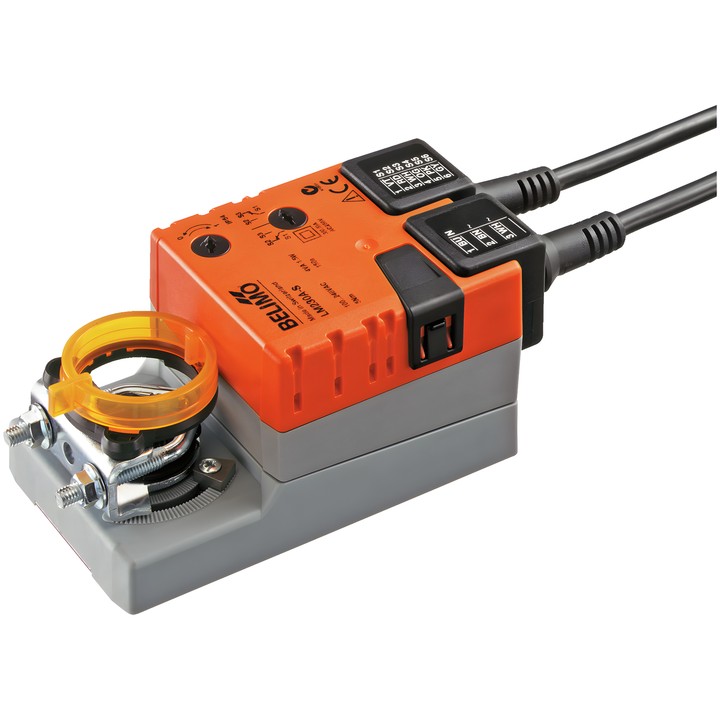

Belimo LM230A-S - 5 Nm damper actuator

Name: Belimo LM230A-S - 5 Nm damper actuator
Brand: Belimo
SKU: LM230A-S
Price: 547.04 PLN
Availability: BackOrder

Belimo

zł547.04

VAT included

zł444.75 tax excluded

Belimo LM230A-S rotary actuator for dampers with a torque of 5 Nm. AC 100...240 V supply, Open/Close or 3-point control, running time 150 s / 90°.

Equipped with an integrated 1x SPDT auxiliary switch, universal clamp for 6...20 mm shafts and manual override button. IEC/EN IP54 degree of protection.

Delivery in approx. 14 days

Belimo LM230A-S damper actuator

Rotary actuator for positioning dampers in technical building systems. According to the technical data sheet, it is designed for air dampers with an area of up to approx. 1 m². This model has no return spring.

Key features and specifications

Motor torque: 5 Nm.
Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
Control: Open/Close, 3-point.
Motor running time: 150 s / 90°; rotation angle: max. 95°.
Integrated 1x SPDT auxiliary switch, adjustable within 0...100%.
Direction of rotation selected by switch: 0 (counterclockwise) / 1 (clockwise).
Manual override button with locking option; adjustable mechanical rotation angle stops.
Universal clamp for 6...20 mm shaft; mechanical, removable position indicator.
Power consumption: 1.5 W during operation, 0.5 W at rest; sizing power: 3.5 VA.
Power and control connection, and auxiliary switch connection: each with a 1 m cable, 3x 0.75 mm².
IEC/EN IP54 degree of protection; IEC/EN protection class II, reinforced insulation.
Ambient temperature: -30...50°C [-22...122°F].

Brand

Belimo
Reference

LM230A-S
EAN13

7630498112188

AC/DC voltage

AC 100...240 V
Auxiliary switch connection

Cable 1 m, 3x 0.75 mm²
Power consumption (running)

1.5 W
Power consumption (holding)

0.5 W
Rated power

3.5 VA
Power supply control connection

Cable 1 m, 3x 0.75 mm²
Control type

Open/close, 3-point
Protection rating

IP54
NEMA protection rating

NEMA 2
Enclosure type

UL Enclosure Type 2
Manual override

Push-button, with locking option
Running time (motor)

150 s / 90°
Ambient temperature

-30...50°C [-22...122°F]
Auxiliary contacts

1x SPDT
Torque

5 Nm
Direction of movement - motor

Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
Rotational angle

95°
Mechanical connection

Universal clamp 6...20 mm
