Belimo NF24A-SR - damper actuator with safety function

Belimo NF24A-SR - damper actuator with safety function

Belimo
zł1,086.48
VAT included
zł883.32 tax excluded

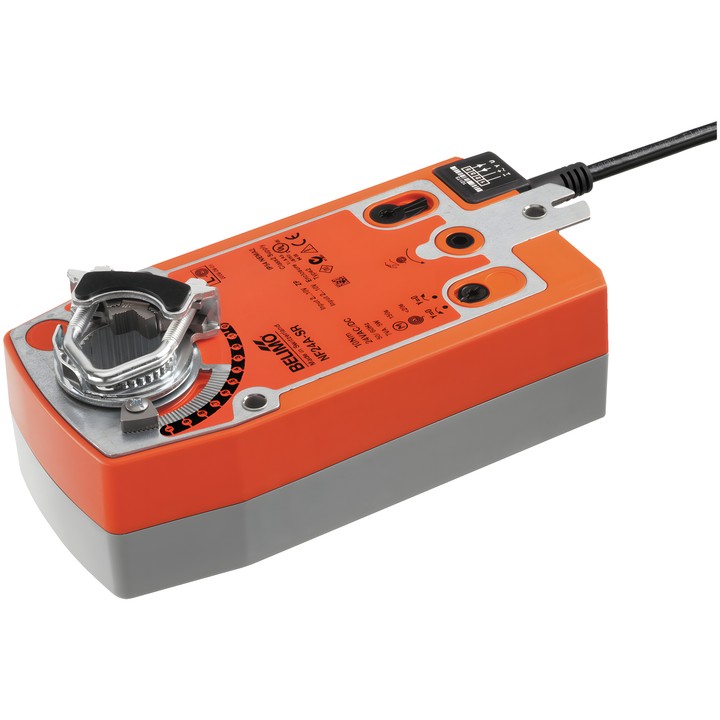

Belimo NF24A-SR rotary actuator for air dampers, with a safety function provided by a return spring. Torque 10 Nm, AC/DC 24 V supply and 2...10 V modulating control.

Motor running time is 150 s / 90°. If the power supply is interrupted, the spring moves the damper to the safety position.

Delivery in approx. 14 days
Share

Belimo NF24A-SR – actuator for dampers

Modulating rotary actuator with a safety function for controlling dampers in building technical systems. According to the technical data sheet, it is designed for air dampers with an area of up to approx. 2 m². During operation, signal Y controls the damper position while the return spring is tensioned. An interruption to the power supply causes the damper to return to the safety position.

Key technical data

  • Motor and safety function torque: 10 Nm.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Y operating range: 2...10 V; position feedback signal U: 2...10 V.
  • Motor running time: 150 s / 90°; safety function running time: <20 s @ -20...50°C, <60 s @ -30°C.
  • Rotation angle: max. 95°; adjustment using mechanical end stops.
  • Power consumption during operation: 3.5 W; in the resting position: 2.5 W; for cable sizing: 5.5 VA.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • Universal shaft clamp for 10...25.4 mm; manual adjustment with crank and locking switch.
  • Degree of protection: IP54; ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    NF24A-SR
  • EAN13
    7630498112843

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    3.5 W
  • Power consumption (holding)
    2.5 W
  • Rated power
    5.5 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Using the crank and locking switch
  • Running time (motor)
    150 s / 90°
  • Running time (safety function)
    ＜20 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    10 Nm
  • Direction of movement - motor
    Selectable using the L/R switch
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 10...25.4 mm
  • Direction of rotation (safety function)
    Selectable by mounting L/R

Techniczna karta katalogowa

Download (1.37MB)

Instrukcja montażu

Download (1.64MB)

EU Declaration of Conformity – NF24A-SR

Download (32.53KB)

Environmental Declaration – NF..

Download (72.31KB)
