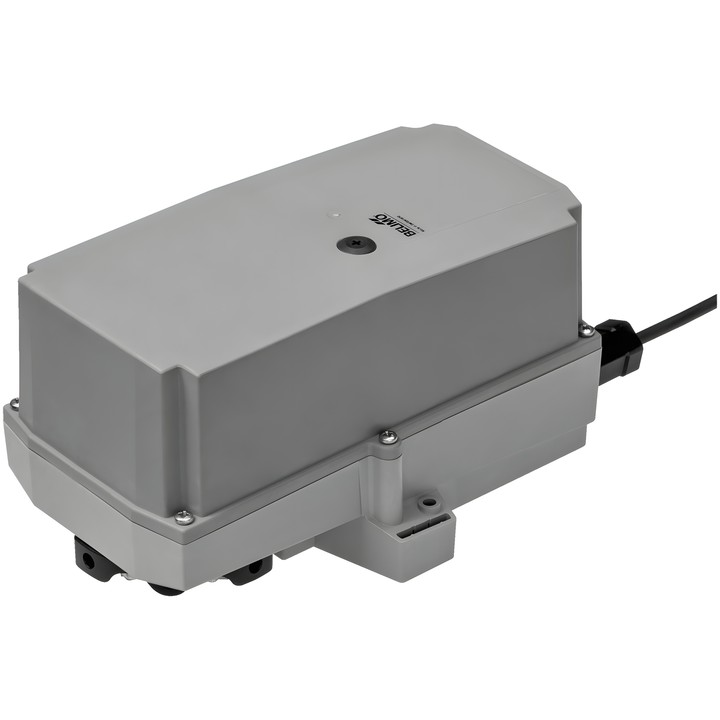

Belimo NKQ24P-SR rotary actuator with safety function for air dampers. Torque 6 Nm, AC/DC 24 V supply, 2...10 V control and 2...10 V position feedback signal.

Motor and safety function running time is 4 s / 90°. IEC/EN IP66/67 protection rating.

Delivery in approx. 14 days
Share

Belimo NKQ24P-SR

Modulating RobustLine rotary actuator for regulating dampers in building services systems. If the power supply fails, energy stored in the capacitors moves the damper to the set safety position.

Key features

  • Motor torque: 6 Nm; air damper size: up to approx. 1.2 m².
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Control signal Y operating range: 2...10 V; position feedback signal U: 2...10 V.
  • Motor running time: 4 s / 90°; safety function running time: 4 s / 90°.
  • Safety position adjustable from 0...100% in 10% increments.
  • Rotation angle: max. 95°; adjustable mechanical stops, minimum permissible rotation angle: 30°.
  • Manual override by push-button with locking option; mechanical position indicator.
  • Universal shaft clamp 8...20 mm; 1 m connection cable, 4x 0.75 mm², FRNC (halogen-free).
  • Power consumption during movement: 11 W; at rest: 3 W; sizing power for cable selection: 22 VA.
  • IEC/EN IP66/67 protection rating; ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    NKQ24P-SR
  • EAN13
    7630498121203

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    11 W
  • Power consumption (holding)
    3 W
  • Rated power
    22 VA
  • Power supply control connection
    1 m cable, 4x 0.75 mm², FRNC (halogen-free)
  • Control type
    DC 2...10 V
  • Protection rating
    IP66/67
  • NEMA protection rating
    NEMA 4X
  • Enclosure type
    UL Enclosure Type 4X
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    4 s / 90°
  • Running time (safety function)
    4 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    6 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 8...20 mm
  • Direction of rotation (safety function)
    Selectable via switch 0...100%
