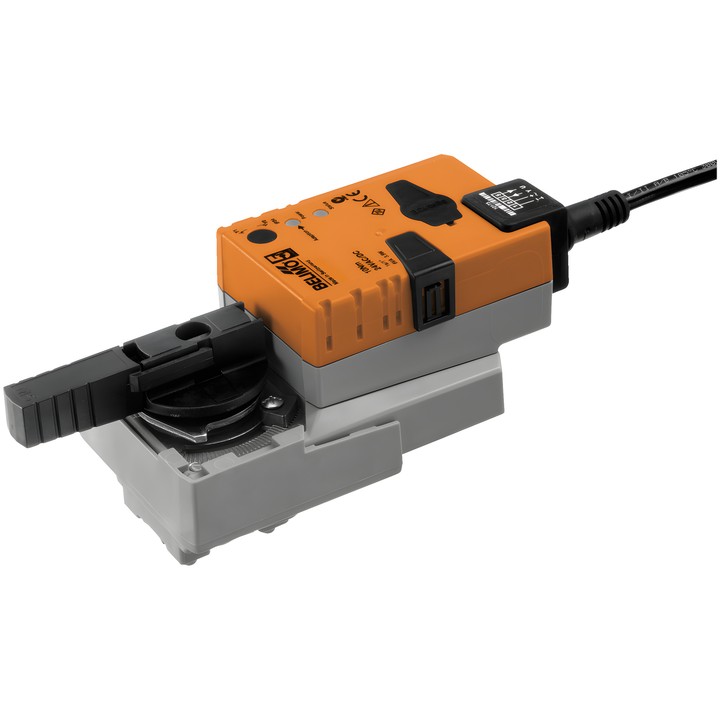

Belimo NR24A-MP - rotary actuator for ball valves

Belimo NR24A-MP - rotary actuator for ball valves

Belimo
zł1,026.62
VAT included
zł834.65 tax excluded

Communicating rotary actuator for ball valves, with a torque of 10 Nm and a nominal voltage of AC/DC 24 V. Supports 2...10 V modulating control and MP-Bus communication.

Running time is 90 s / 90° and can be set within a range of 45...170 s. The actuator has manual push-button operation and an IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo NR24A-MP – actuator for ball valves

Communicating rotary actuator with an adjustable operating range and sensor signal conversion function. It can operate with an analogue control signal Y or receive a digital control signal via MP-Bus.

Key features and specifications

  • Motor torque: 10 Nm; nominal voltage: AC/DC 24 V, 50/60 Hz.
  • Operating range Y: 2...10 V; feedback signal U: 2...10 V.
  • MP-Bus communication; maximum of 8 MP-Bus nodes.
  • Motor running time: 90 s / 90°; adjustable running time: 45...170 s.
  • Power consumption during operation: 3.5 W; at rest: 1.2 W; for cable sizing: 6 VA.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • Manual push-button operation with lock option; mechanical position indicator.
  • Adjustable rotation angle with mechanical stops; setting range adaptation at first power-up.
  • IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).

When operating via MP-Bus, connection U serves as a communication interface and does not provide an analogue measurement signal. Device parameters can be modified using Belimo Assistant 2.

  • Brand
    Belimo
  • Reference
    NR24A-MP
  • EAN13
    7630498113437

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    3.5 W
  • Power consumption (holding)
    1.2 W
  • Rated power
    6 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2

Techniczna karta katalogowa

Download (1.66MB)

Instrukcja montażu

Download (630.56KB)

Techniczna karta katalogowa – NR24A-MP

Download (1.66MB)

EU Declaration of Conformity – NR24A-MP

Download (50.69KB)

Environmental Declaration – NR..

Download (72.78KB)
