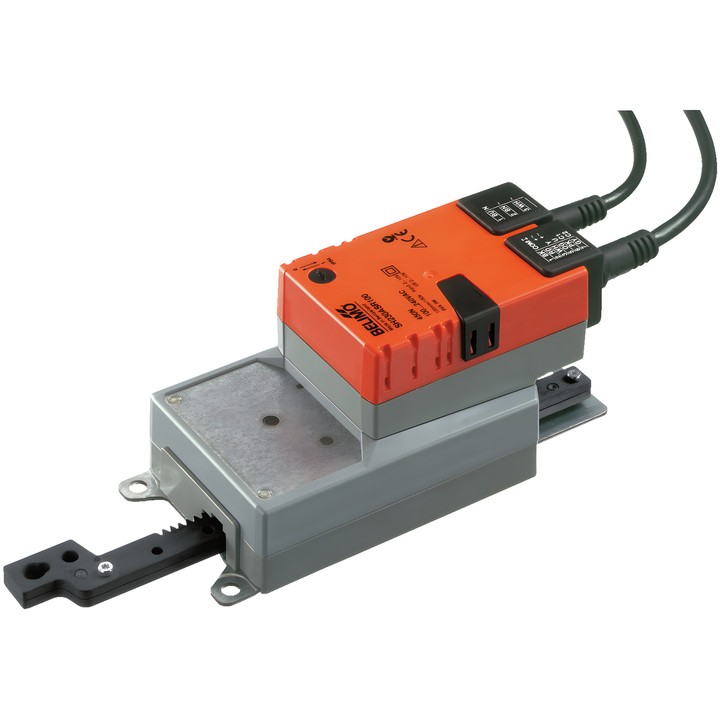

Belimo SH230ASR100 linear actuator for regulating dampers and gate valves in building services systems. Force 450 N, AC 100...240 V power supply, 2...10 V modulating control and 2...10 V position feedback signal.

Stroke 100 mm, running time 150 s / 100 mm and IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo SH230ASR100 – modulating linear actuator

Actuator designed for regulating dampers and gate valves in building services systems. The Y control signal determines the actuator position, while voltage U is used for electrical position indication.

Key specifications

  • Actuator force: 450 N.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Modulating control: 2...10 V; position feedback signal: 2...10 V.
  • Stroke: 100 mm; maximum stroke length: 100 mm, fixed setting.
  • Motor running time: 150 s / 100 mm.
  • Power consumption during operation: 3 W; at rest: 1 W; for cable sizing: 6 VA.
  • Direction of movement selected by switch; manual adjustment by push-button with locking option.
  • Power connection: 1 m cable, 2x 0.75 mm²; control connection: 1 m cable, 4x 0.75 mm².
  • IEC/EN protection rating: IP54; IEC/EN protection class: II, reinforced insulation.
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    SH230ASR100
  • EAN13
    7630498114205

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    3 W
  • Power consumption (holding)
    1 W
  • Rated power
    6 VA
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    450 N
  • Manual override
    Push-button, with locking option
  • Stroke
    100 mm
  • Running time (motor)
    150 s / 100 mm
  • Power connection
    Cable 1 m, 2x 0.75 mm²
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Direction of movement - motor
    Selectable by switch
  • Control connection
    Cable 1 m, 4x 0.75 mm²
