Belimo SH24A-MP100 - linear actuator for dampers

Belimo SH24A-MP100 - linear actuator for dampers

Belimo
zł1,053.86
VAT included
zł856.80 tax excluded

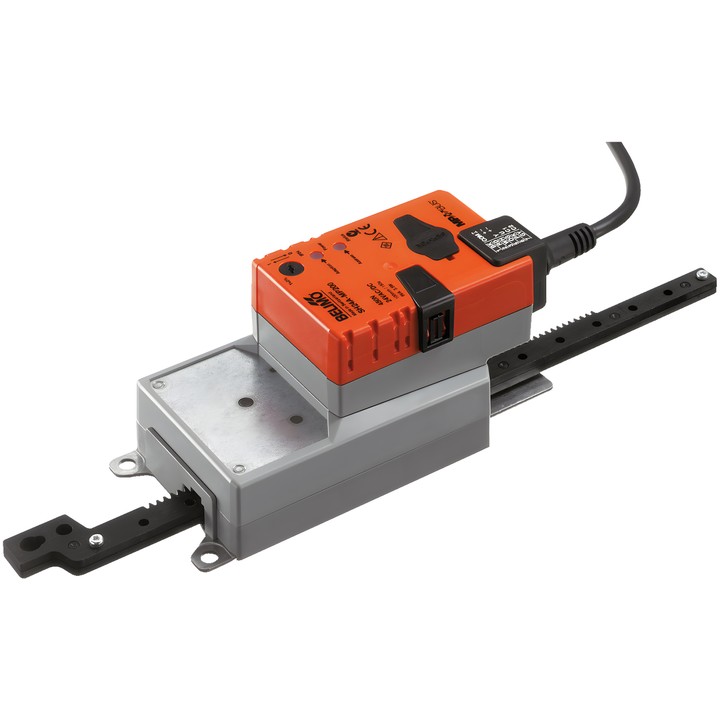

Belimo SH24A-MP100 communication-capable linear actuator with a force of 450 N, powered by AC/DC 24 V. Supports modulating control and MP-Bus communication. The stroke is max. 100 mm and can be adjusted in 20 mm increments.

The running time is 150 s / 100 mm, with an adjustable range of 150...600 s / 100 mm. Degree of protection: IP54.

Delivery in approx. 14 days
Share

Belimo SH24A-MP100 – linear actuator

Linear actuator designed for controlling dampers and slide valves in building services systems. It can operate with an analogue control signal or receive a digital signal via MP-Bus.

Key features and specifications

  • Motor force: 450 N; rated voltage: AC/DC 24 V, 50/60 Hz.
  • Communication: MP-Bus; operating range Y: 2...10 V; position feedback signal U: 2...10 V.
  • Stroke: 100 mm; max. stroke length 100 mm, adjustable in 20 mm increments.
  • Motor running time: 150 s / 100 mm; adjustable: 150...600 s / 100 mm.
  • Power consumption: 3.5 W during operation and 1.4 W in the resting position; sizing value for cables: 6 VA.
  • Direction of movement changed by switch; manual adjustment by button with option to lock.
  • Sensor connection supported, with its signal transmitted via MP-Bus.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • IEC/EN degree of protection: IP54; ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    SH24A-MP100
  • EAN13
    7630498114243

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    3.5 W
  • Power consumption (holding)
    1.4 W
  • Rated power
    6 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    450 N
  • Manual override
    Push-button, with locking option
  • Stroke
    100 mm
  • Running time (motor)
    150 s / 100 mm
  • Variable motor running time
    150...600 s / 100 mm
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Direction of movement - motor
    Selectable by switch

Techniczna karta katalogowa

Download (1.8MB)

Instrukcja montażu

Download (646.91KB)

Techniczna karta katalogowa – SH24A-MP100

Download (1.8MB)

EU Declaration of Conformity – SH24A-MP100

Download (32.8KB)

Environmental Declaration – SH..100..

Download (71.94KB)
In business since 2005
Over 20 years of experience
A trusted partner
Reliable service and customer trust
Technical support
Help with selecting and operating equipment
