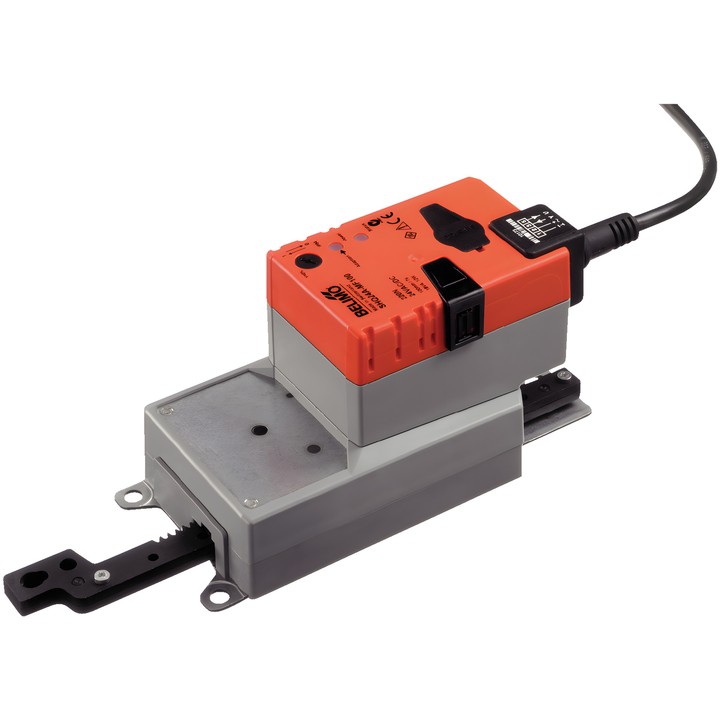

Belimo SHQ24A-MF100 - linear actuator for dampers

Belimo SHQ24A-MF100 - linear actuator for dampers

Belimo
zł1,423.71
VAT included
zł1,157.49 tax excluded

Configurable Belimo SHQ24A-MF100 linear actuator for controlling dampers and slide valves in building services systems. Force 200 N, AC/DC 24 V supply and 2...10 V modulating control.

Max. stroke 100 mm, adjustable in 20 mm increments, travel time 7 s / 100 mm (adjustable 7...30 s / 100 mm) and IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo SHQ24A-MF100 – linear actuator

Configurable actuator for controlling dampers and slide valves in building services systems. The analogue Y signal determines the actuator position, while the U signal provides position feedback.

Key features

  • Actuating force: 200 N; air damper size up to approx. 1.3 m².
  • Supply: AC/DC 24 V, 50/60 Hz.
  • Modulating control: 2...10 V; position feedback signal: 2...10 V. Ranges are configurable.
  • Stroke: 100 mm; max. 100 mm, adjustable in 20 mm increments. Minimum stroke: 40 mm.
  • Motor travel time: 7 s / 100 mm, adjustable 7...30 s / 100 mm.
  • Power consumption: 13 W while moving and 2 W at rest; sizing power: 23 VA.
  • Direction of movement selected by switch; manual override by push-button, with the option to lock it.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...40°C [-22...104°F].

Setting range adaptation takes place automatically when the power is first switched on; it can also be started manually. Selected parameters can be changed using Belimo Assistant 2 or ZTH EU.

  • Brand
    Belimo
  • Reference
    SHQ24A-MF100
  • EAN13
    7630498114298

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    13 W
  • Power consumption (holding)
    2 W
  • Rated power
    23 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    200 N
  • Manual override
    Push-button, with locking option
  • Stroke
    100 mm
  • Running time (motor)
    7 s / 100 mm
  • Variable motor running time
    7...30 s / 100 mm
  • Ambient temperature
    -30...40°C [-22...104°F]
  • Direction of movement - motor
    Selectable by switch

Techniczna karta katalogowa

Download (1.56MB)

Instrukcja montażu

Download (523.51KB)

EU Declaration of Conformity – SHQ24A-MF100

Download (32.78KB)

Environmental Declaration – SH..100..

Download (71.95KB)
