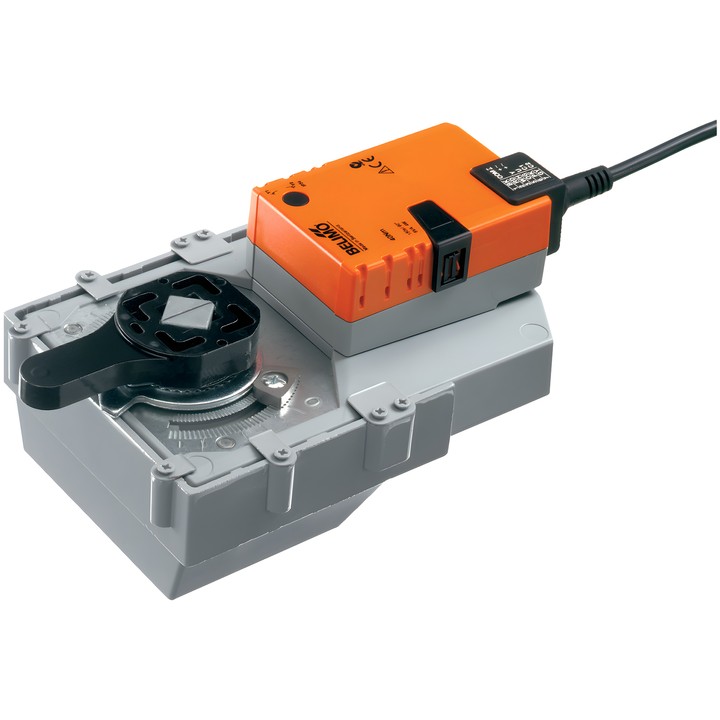

Belimo GR230A-7 - rotary actuator for dampers

Name: Belimo GR230A-7 - rotary actuator for dampers
Brand: Belimo
SKU: GR230A-7
Price: 1418.24 PLN
Availability: BackOrder

Belimo

zł1,418.24

VAT included

zł1,153.04 tax excluded

Belimo GR230A-7 rotary actuator for dampers with a torque of 40 Nm. AC 100...240 V supply, Open/Close control and an operating time of 150 s / 90°.

Features push-button manual override, a mechanical position indicator and adjustable rotation angle stops. Protection rating IP54.

Delivery in approx. 14 days

Belimo GR230A-7 – rotary actuator for dampers

Electronic rotary actuator for dampers, designed for Open/Close control. It allows direct mounting on the damper; the mounting position relative to the damper can be selected in 90° increments.

Main features and specifications

Torque: 40 Nm.
Rated voltage: AC 100...240 V; frequency: 50/60 Hz; voltage range: AC 85...265 V.
Operating time: 150 s / 90°.
Power consumption during operation: 5 W; in standby position: 2 W; power for cable sizing: 9 VA.
Power and control connection: 1 m cable, 3x 0.75 mm².
Push-button manual override with locking option; integrated mechanical position indicator.
Rotation angle adjustment using mechanical end stops.
Connection flange: F07.
IEC/EN protection rating: IP54; IEC/EN protection class: II, reinforced insulation.
Ambient temperature: -30...50°C; ambient humidity: max. 95% RH, non-condensing.
Weight: 2.2 kg.

The actuator is protected against overload and stops automatically when it reaches an end stop. Parallel operation is possible, subject to the power specifications.
