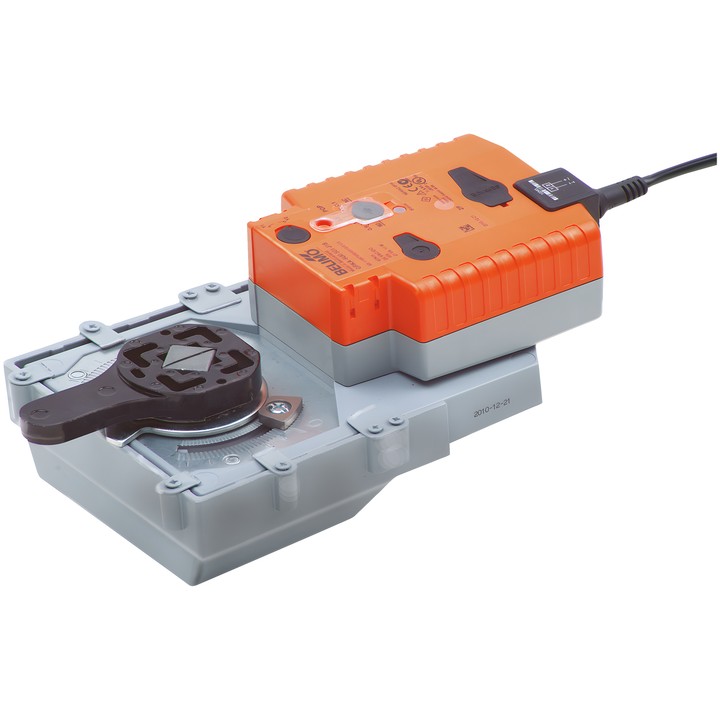

Belimo GRK24A-5 - rotary actuator for valves

Name: Belimo GRK24A-5 - rotary actuator for valves
Brand: Belimo
SKU: GRK24A-5
Price: 2556.63 PLN
Availability: BackOrder

Belimo

zł2,556.63

VAT included

zł2,078.56 tax excluded

Belimo GRK24A-5 rotary actuator for rotary valves and dampers. Torque 40 Nm, AC/DC 24 V supply and Close/Open control.

The safety function uses energy stored in capacitors to move the valve to the set position following a power failure. Motor running time is 150 s / 90°, and safety function running time is 35 s / 90°.

Delivery in approx. 14 days

Belimo GRK24A-5 – rotary actuator

Actuator for rotary valves and dampers, equipped with a safety function with adjustable NC/NO position. If the power supply is interrupted, energy stored in the capacitors enables the valve to move to the selected safety position.

Key features and specifications

Motor torque: 40 Nm.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Control: Close/Open.
Motor running time: 150 s / 90°; safety function running time: 35 s / 90°.
NC/NO safety position, set using the POP dial; factory-set PF hold time: 2 s.
Power consumption during operation: 11 W; at rest: 3 W; sizing power: 21 VA.
Power and control connection: 1 m cable, 2x 0.75 mm².
Flange connection: F05; mechanical rotation angle stops and mechanical position indicator.
Manual adjustment using a push button.
IEC/EN degree of protection: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).

On delivery, the capacitors are discharged; before initial operation, they require approximately 20 s of pre-charging.
