Belimo LH24A-MP100 - linear actuator

Belimo LH24A-MP100 - linear actuator

Belimo
zł714.19
VAT included
zł580.64 tax excluded

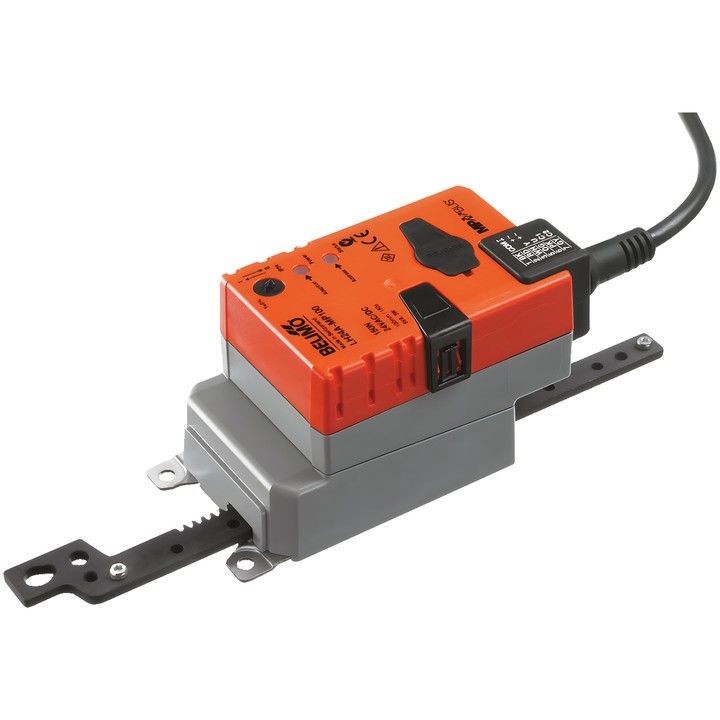

Belimo LH24A-MP100 linear actuator for controlling dampers and gates in building technical systems. Driving force 150 N, AC/DC 24 V supply and MP-Bus communication.

Max. stroke 100 mm, adjustable in 20 mm increments, running time 150 s / 100 mm and IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo LH24A-MP100 – linear actuator

Communicating linear actuator for controlling dampers and gates in building technical systems. According to the technical data sheet, it is designed for air dampers with an area of up to approx. 1 m².

Key features

  • Motor driving force: 150 N.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Modulating control and MP-Bus communication; operating range Y: 2...10 V, feedback signal U: 2...10 V.
  • Stroke: 100 mm; max. 100 mm, adjustable in 20 mm increments.
  • Motor running time: 150 s / 100 mm; adjustable: 70...270 s / 100 mm.
  • Connected sensor signal can be converted and transmitted via MP-Bus.
  • Direction of movement selected by switch; manual adjustment by push-button, with locking option.
  • Power consumption: 2.5 W during operation and 1.3 W at rest; power rating for cable sizing: 5 VA.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    LH24A-MP100
  • EAN13
    7630498112065

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    1.3 W
  • Rated power
    5 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    150 N
  • Manual override
    Push-button, with locking option
  • Stroke
    100 mm
  • Running time (motor)
    150 s / 100 mm
  • Variable motor running time
    70...270 s / 100 mm
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Direction of movement - motor
    Selectable by switch

Techniczna karta katalogowa

Download (1.87MB)

Instrukcja montażu

Download (343.85KB)

Techniczna karta katalogowa – LH24A-MP100

Download (1.87MB)

EU Declaration of Conformity – LH24A-MP100

Download (32.8KB)

Environmental Declaration – LH..100..

Download (71.96KB)
