Belimo LH24A-MP100-TP communication-enabled linear actuator for controlling dampers and slide valves in building services systems. Force 150 N, AC/DC 24 V supply and MP-Bus communication.

The max. 100 mm stroke can be adjusted in 20 mm increments. The running time is 150 s / 100 mm, and the protection rating is IP54.

Delivery in approx. 14 days
Share

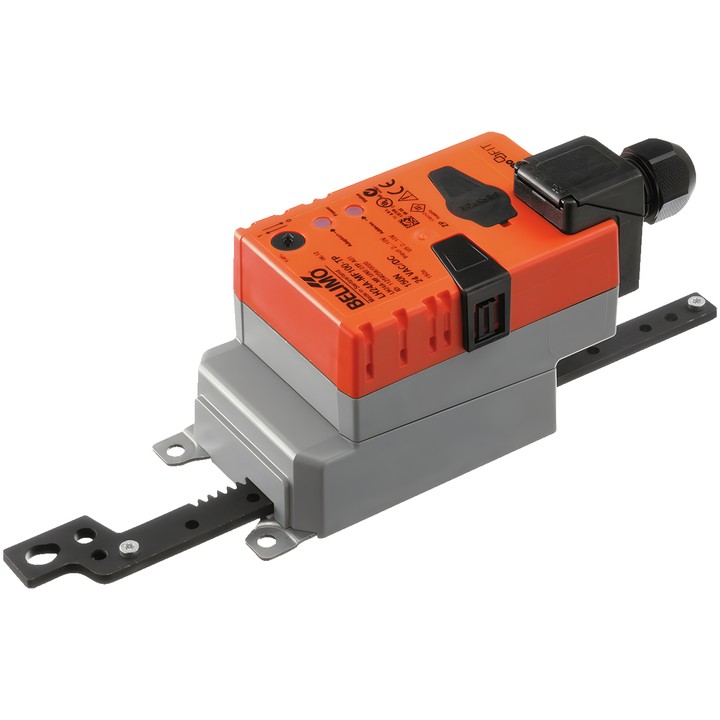

Belimo LH24A-MP100-TP – linear actuator

Actuator for controlling dampers and slide valves in building services systems. Supports modulating control and MP-Bus communication. It can also convert signals from a connected sensor for transmission via MP-Bus.

Key features and specifications

  • Actuator force: 150 N; rated voltage: AC/DC 24 V, 50/60 Hz.
  • Operating range Y: 2...10 V; position feedback signal U: 2...10 V.
  • Stroke: 100 mm; max. 100 mm, adjustable in 20 mm increments.
  • Motor running time: 150 s / 100 mm; adjustable: 70...270 s / 100 mm.
  • Power consumption: 2.5 W during operation and 1.2 W at rest; power rating for cable sizing: 5 VA.
  • Direction of movement selected by switch; manual adjustment by push-button with option to lock.
  • Power and control connection: 4 mm² terminals (cable ø4...10 mm, 4-core).
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    LH24A-MP100-TP
  • EAN13
    7630498112072

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    1.2 W
  • Rated power
    5 VA
  • Power supply control connection
    4 mm² terminals (ø4...10 mm cable, 4-core)
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    150 N
  • Manual override
    Push-button, with locking option
  • Stroke
    100 mm
  • Running time (motor)
    150 s / 100 mm
  • Variable motor running time
    70...270 s / 100 mm
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Direction of movement - motor
    Selectable by switch

Techniczna karta katalogowa

Download (1.96MB)

Instrukcja montażu

Download (343.87KB)

Techniczna karta katalogowa – LH24A-MP100-TP

Download (1.96MB)

EU Declaration of Conformity – LH24A-MP100-TP

Download (32.85KB)

Environmental Declaration – LH..100..

Download (71.98KB)
