Rotary actuator for dampers with safety function, 10 Nm torque and AC/DC 24 V supply. Supports 2...10 V analogue control and MP-Bus communication.

Motor running time is 150 s / 90°, and the protection rating is IP66/67.

Delivery in approx. 14 days
Share

Belimo NF24G-MP-L

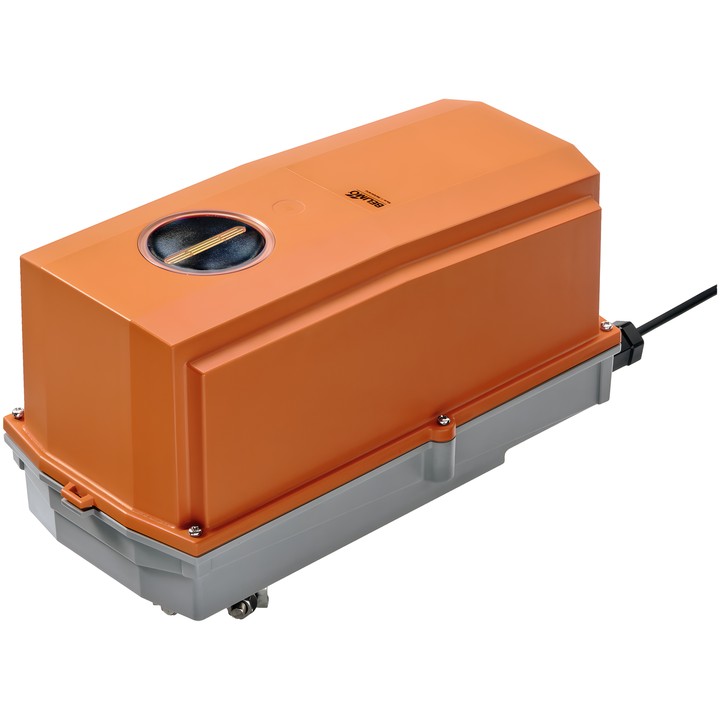

Communicating rotary actuator for damper control in technical building systems. During analogue operation, the return spring is tensioned; if the power supply is interrupted, it moves the damper to the safety position. The device is suitable for outdoor applications.

Key features and specifications

  • Motor and safety function torque: 10 Nm.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Analogue control: 2...10 V; position feedback signal: 2...10 V; communication: MP-Bus.
  • Sensor connection is possible, with its signal transmitted via MP-Bus.
  • Motor running time: 150 s / 90°; adjustable running time: 40...150 s.
  • Safety function running time: <20 s @ -20...50°C, <60 s @ -30°C.
  • Rotation angle: max. 95°; mechanical rotation angle limit stops and position indicator.
  • Universal shaft clamp for 12...26.7 mm shafts; manual adjustment using a crank and locking switch.
  • Power consumption during operation: 5.5 W; at rest: 3.5 W; for cable sizing: 8 VA.
  • Power and control connection: 1 m cable, 4x 0.75 mm², halogen-free.
  • Protection rating: IP66/67; NEMA 4X; UL Enclosure Type 4X housing.
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    NF24G-MP-L
  • EAN13
    7630498121159

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    5.5 W
  • Power consumption (holding)
    3.5 W
  • Rated power
    8 VA
  • Power supply control connection
    1 m cable, 4x 0.75 mm², FRNC (halogen-free)
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP66/67
  • NEMA protection rating
    NEMA 4X
  • Enclosure type
    UL Enclosure Type 4X
  • Manual override
    Using the crank and locking switch
  • Running time (motor)
    150 s / 90°
  • Running time (safety function)
    ＜20 s
  • Variable motor running time
    40...150 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    10 Nm
  • Direction of movement - motor
    Selectable using the L/R switch
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 12...26.7 mm
  • Direction of rotation (safety function)
    L (ccw)
