Belimo NMQ24A-SR - actuator for dampers with analog control

Belimo NMQ24A-SR - actuator for dampers with analog control

Belimo
zł1,131.75
VAT included
zł920.12 tax excluded

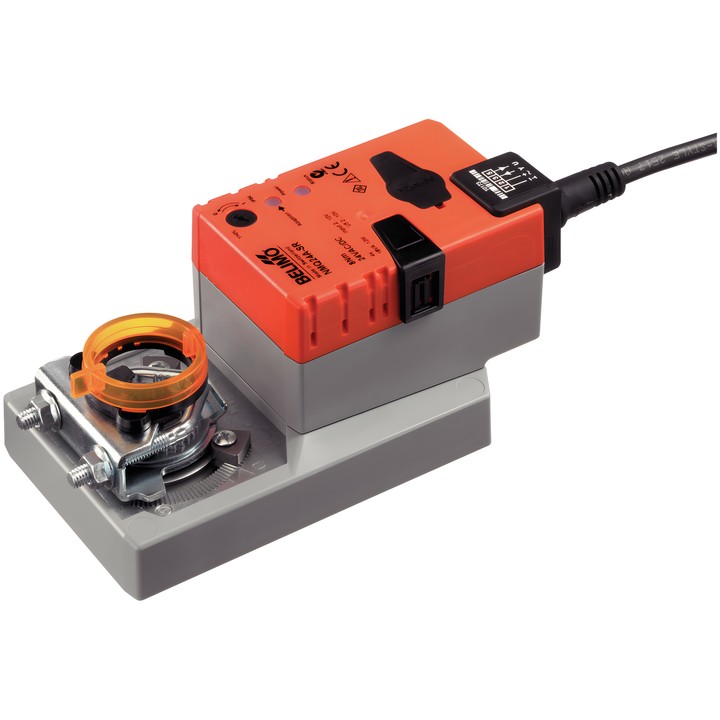

Belimo NMQ24A-SR damper actuator with a torque of 8 Nm, AC/DC 24 V supply and an operating time of 4 s / 90°. Controlled by a 2...10 V signal, with 2...10 V position feedback.

Equipped with a universal shaft clamp for 8...26.7 mm shafts, push-button manual override and adjustable mechanical rotation angle stops. IEC/EN IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo NMQ24A-SR – damper actuator

An actuator with analog control for operating dampers in building services systems. According to the technical data sheet, it is designed for air dampers with an area of up to approx. 1.5 m².

Key features and specifications

  • Torque: 8 Nm; nominal voltage: AC/DC 24 V, 50/60 Hz.
  • Control signal Y: 2...10 V; position feedback signal U: 2...10 V.
  • Motor operating time: 4 s / 90°; rotation angle: max. 95°, with mechanical stops adjustable on both sides. Minimum permitted rotation angle: 30°.
  • Direction of movement selected by a 0/1 switch; push-button manual override with locking option.
  • Universal shaft clamp for 8...26.7 mm shafts; mechanical, removable position indicator.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • Power consumption during operation: 13 W; at rest: 2 W; power for cable sizing: 23 VA.
  • IEC/EN IP54 protection rating; ambient temperature: -30...40°C [-22...104°F].

When power is applied for the first time, the actuator adapts the setting range to the mechanical end positions. Adaptation can also be started using the button.

  • Brand
    Belimo
  • Reference
    NMQ24A-SR
  • EAN13
    7630498113345

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    13 W
  • Power consumption (holding)
    2 W
  • Rated power
    23 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    4 s / 90°
  • Ambient temperature
    -30...40°C [-22...104°F]
  • Torque
    8 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 8...26.7 mm

Techniczna karta katalogowa

Download (1.33MB)

Instrukcja montażu

Download (437.78KB)

EU Declaration of Conformity – NMQ24A-SR

Download (32.73KB)

Environmental Declaration – NMQ..

Download (72.35KB)
