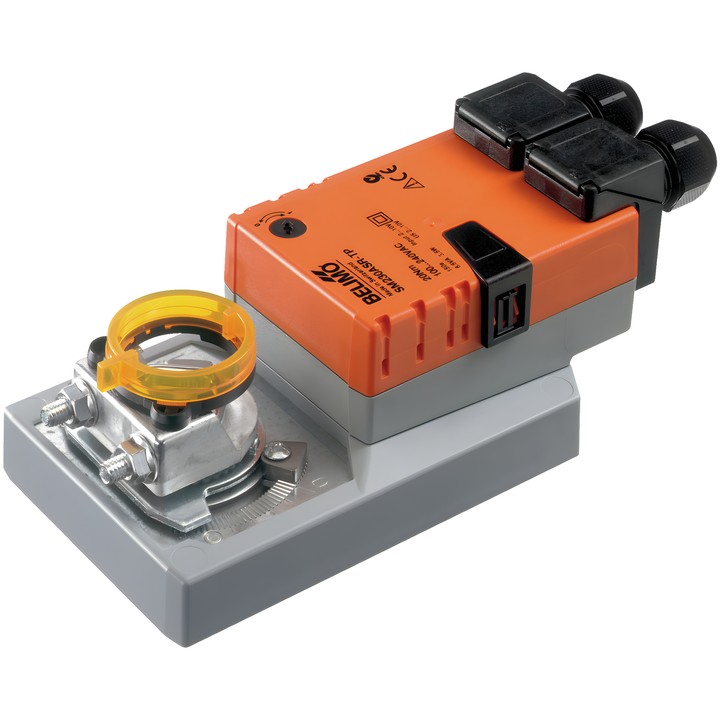

Belimo SM230ASR-TP damper actuator with a torque of 20 Nm, AC 100...240 V supply and 2...10 V signal control. The running time is 150 s / 90°, and the position feedback signal range is 2...10 V.

Delivery in approx. 14 days
Share

Belimo SM230ASR-TP

Modulating actuator for positioning dampers in technical building systems. The manufacturer specifies a damper size of up to approx. 4 m².

Key features

  • Torque: 20 Nm; running time: 150 s / 90°.
  • Rated voltage: AC 100...240 V, 50/60 Hz.
  • Operating range of control signal Y: 2...10 V; position feedback signal U: 2...10 V.
  • Power consumption during operation: 3.5 W; at rest: 1 W; for cable sizing: 6.5 VA.
  • Rotation angle: max. 95°, with mechanical stops adjustable on both sides.
  • Direction of movement selected by 0/1 switch; manual override by push-button, with lock option.
  • Reversible universal mounting clamp for 10...20 mm shaft; electrical connection via terminals.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: II, double insulation.
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    SM230ASR-TP
  • EAN13
    7630498114359

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    3.5 W
  • Power consumption (holding)
    1 W
  • Rated power
    6.5 VA
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Power connection
    Terminals 4 mm² (cable ø4...10 mm, 2-core)
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    20 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 10...20 mm
  • Control connection
    Terminals 4 mm² (cable ø4...10 mm, 4-core)

Techniczna karta katalogowa

Download (1.73MB)

Instrukcja montażu

Download (203.36KB)

EU Declaration of Conformity – SM230ASR-TP

Download (32.8KB)

Environmental Declaration – SM..

Download (72.49KB)
