Belimo SM24A-SR-TP - damper actuator

Belimo SM24A-SR-TP - damper actuator

Belimo
zł909.45
VAT included
zł739.39 tax excluded

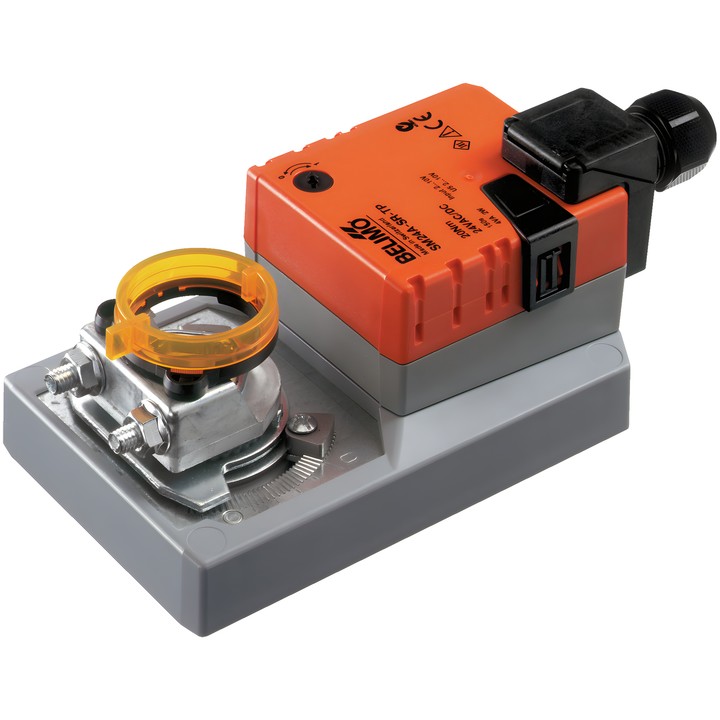

Belimo SM24A-SR-TP damper actuator with 20 Nm torque, AC/DC 24 V supply and 2...10 V modulating control. Motor running time is 150 s / 90°.

Equipped with a 2...10 V position feedback signal, connection terminals and a reversible universal mounting clamp for 10...20 mm.

Delivery in approx. 14 days
Share

Belimo SM24A-SR-TP – damper actuator

Modulating actuator designed to control dampers in building services systems. The manufacturer specifies a damper size of up to approx. 4 m².

Key technical data

  • Motor torque: 20 Nm.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Control signal Y operating range: 2...10 V; position feedback signal U: 2...10 V.
  • Motor running time: 150 s / 90°; maximum rotation angle: 95°.
  • Power consumption during operation: 2 W; at rest: 0.4 W; for cable sizing: 4 VA.
  • Direction of movement selected by 0/1 switch; manual adjustment by push button with locking option.
  • Rotation angle adjusted using mechanical stops on both sides; mechanical position indicator.
  • Mechanical connection: reversible universal mounting clamp for 10...20 mm.
  • Power and control connection: 4 mm² terminals (ø4...10 mm cable, 4-core).
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    SM24A-SR-TP
  • EAN13
    7630498114502

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    2 W
  • Power consumption (holding)
    0.4 W
  • Rated power
    4 VA
  • Power supply control connection
    4 mm² terminals (ø4...10 mm cable, 4-core)
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    20 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 10...20 mm
