Belimo SM24A-SR - damper actuator

Belimo SM24A-SR - damper actuator

Belimo
zł909.45
VAT included
zł739.39 tax excluded

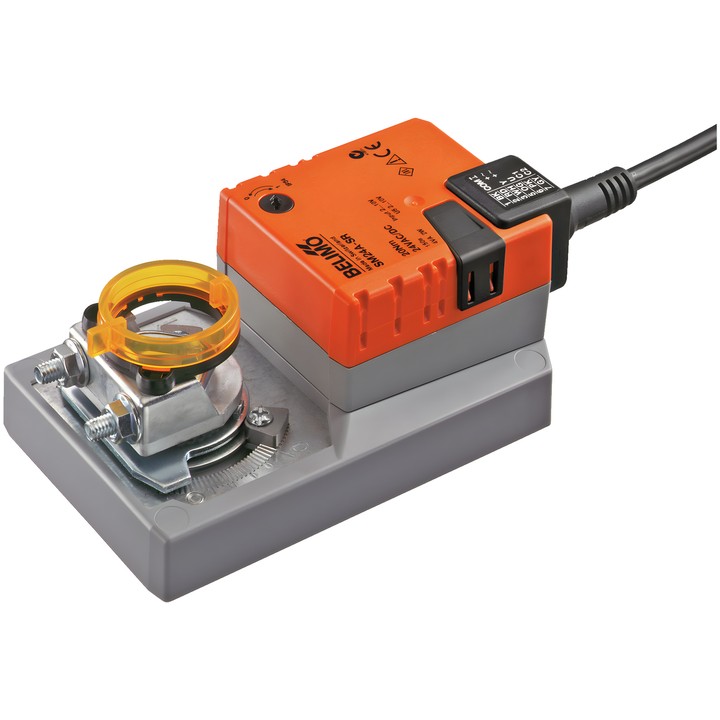

Belimo SM24A-SR is a rotary damper actuator without safety function, with a torque of 20 Nm. AC/DC 24 V power supply, modulating control 2...10 V and position feedback signal 2...10 V.

Running time is 150 s / 90°, and the degree of protection is IP54.

Delivery in approx. 14 days
Share

Belimo SM24A-SR damper actuator

Modulating actuator for controlling dampers in building technical systems. The technical data sheet specifies a damper size of up to approx. 4 m². The device is intended for stationary heating, ventilation and air-conditioning installations.

Key features and specifications

  • Motor torque: 20 Nm; power supply: AC/DC 24 V, 50/60 Hz.
  • Modulating control: 2...10 V; position feedback signal: 2...10 V.
  • Motor running time: 150 s / 90°; rotation angle: max. 95°.
  • Power consumption during operation: 2 W; in the rest position: 0.4 W; sizing power: 4 VA.
  • Reversible universal clamp for shafts 10...20 mm; adjustable mechanical rotation angle limiters and mechanical position indicator.
  • Direction of movement selected by 0/1 switch; manual adjustment by push button with locking option.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    SM24A-SR
  • EAN13
    7630498114489

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    2 W
  • Power consumption (holding)
    0.4 W
  • Rated power
    4 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    20 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 10...20 mm
