Communicating actuator for dampers Belimo SM24A-MP with a torque of 20 Nm, powered by AC/DC 24 V. Supports MP-Bus and 2...10 V modulating control.

Running time is 150 s / 90° and can be set within a range of 86...346 s. The actuator has an IP54 degree of protection.

Delivery in approx. 14 days
Share

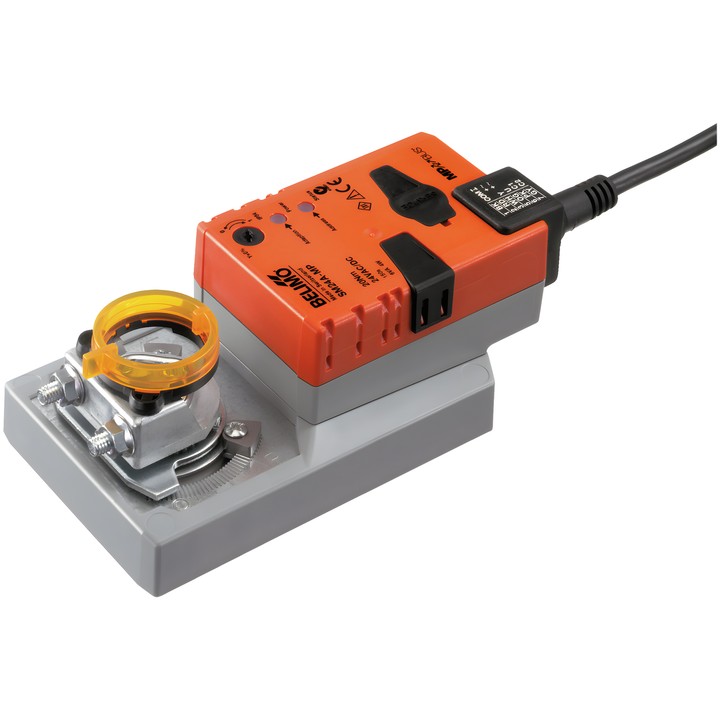

Belimo SM24A-MP

Communicating actuator for controlling dampers in technical building systems. It can operate with an analogue control signal or receive a digital control signal via MP-Bus. It allows a sensor to be connected and its signal to be transmitted to the higher-level system via MP-Bus.

Key features and specifications

  • Torque: 20 Nm; nominal voltage: AC/DC 24 V, 50/60 Hz.
  • MP-Bus communication control and operating range Y: 2...10 V; feedback signal U: 2...10 V.
  • Motor running time: 150 s / 90°; adjustable running time: 86...346 s.
  • Rotation angle: max. 95°, with the option of limiting it using mechanical stops on both sides.
  • Direction of movement selected by a 0/1 switch; manual adjustment by push-button with locking option.
  • Reversible universal shaft clamp for 10...20 mm shafts and mechanical position indicator.
  • Power and control cable: 1 m, 4x 0.75 mm².
  • Power consumption during operation: 3.5 W; at rest: 1.4 W; for cable sizing: 6 VA.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    SM24A-MP
  • EAN13
    7630498114434

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    3.5 W
  • Power consumption (holding)
    1.4 W
  • Rated power
    6 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Variable motor running time
    86...346 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    20 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 10...20 mm
