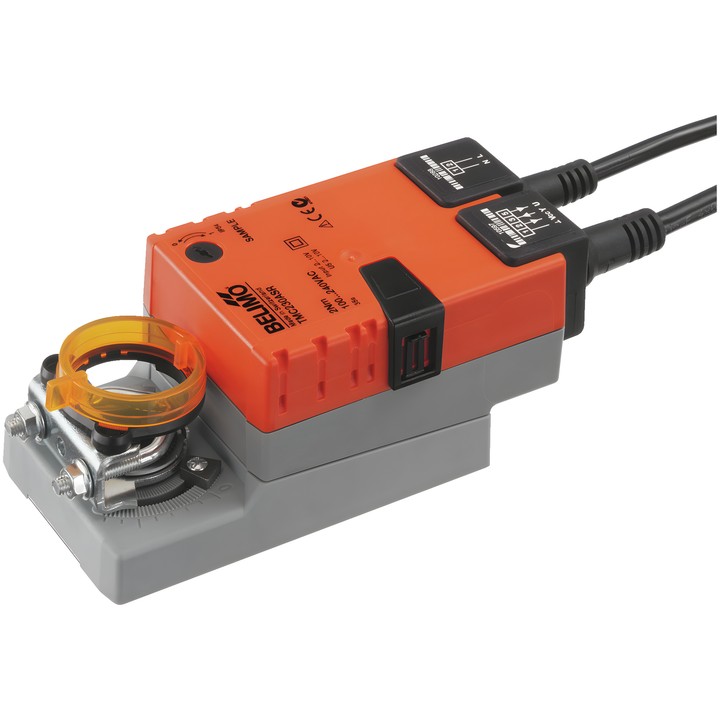

Modulating Belimo TMC230ASR damper actuator with a torque of 2 Nm. AC 100...240 V supply, 2...10 V control range and 2...10 V position feedback signal.

Running time is 35 s / 90°. The actuator has a universal shaft clamp for 6...20 mm, push-button manual override and IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo TMC230ASR – modulating damper actuator

The actuator is designed to position dampers in building technical systems. According to the technical data sheet, it supports air dampers with an area of up to approx. 0.4 m². Position is set by the Y control signal, while voltage U is used for electrical position indication.

Key technical data

  • Motor torque: 2 Nm; running time: 35 s / 90°.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Y operating range: 2...10 V; U position feedback signal: 2...10 V.
  • Power consumption during operation: 2 W; in standby: 1 W; for cable sizing: 3.5 VA.
  • Direction of movement selected by 0/1 switch; max. rotation angle 95°, limited by mechanical end stops on both sides.
  • Push-button manual override with locking option; mechanical position indicator.
  • Mechanical connection: universal shaft clamp for 6...20 mm.
  • Power connection: 1 m cable, 2x 0.75 mm²; control connection: 1 m cable, 4x 0.75 mm².
  • IEC/EN protection rating: IP54; IEC/EN protection class: II, reinforced insulation.
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    TMC230ASR
  • EAN13
    7630498115745

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    2 W
  • Power consumption (holding)
    1 W
  • Rated power
    3.5 VA
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    35 s / 90°
  • Power connection
    Cable 1 m, 2x 0.75 mm²
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    2 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...20 mm
  • Control connection
    Cable 1 m, 4x 0.75 mm²
