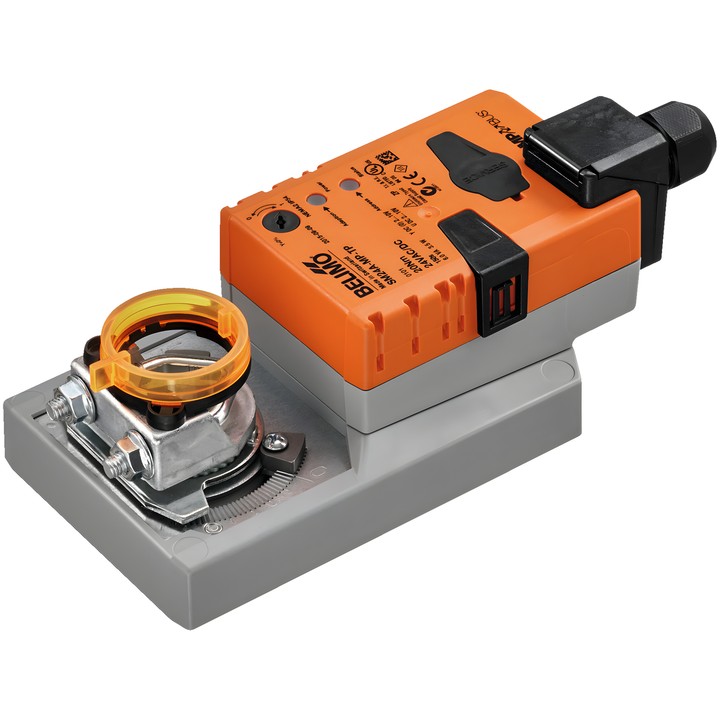

Belimo SM24A-MP-TP damper actuator with a torque of 20 Nm and AC/DC 24 V supply. Supports 2...10 V modulating control and MP-Bus communication.

Running time is 150 s / 90°, with a variable motor running time of 86...346 s. The device has connection terminals, push-button manual override and IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo SM24A-MP-TP

Communicating rotary actuator for damper control in technical building systems. According to the documentation, it is designed for air dampers with an area of up to approx. 4 m².

Key features and parameters

  • Torque: 20 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
  • Modulating control: operating range Y 2...10 V; position feedback signal U 2...10 V.
  • MP-Bus communication and the option to convert the connected sensor signal for transmission via MP-Bus.
  • Motor running time: 150 s / 90°; variable running time: 86...346 s.
  • Rotation angle: max. 95°, with adjustable mechanical end stops on both sides.
  • Direction of movement selected by 0/1 switch; manual override by push button with locking option.
  • Reversible universal mounting clamp 10...20 mm; mechanical position indicator.
  • Power and control connection: 4 mm² terminals (cable ø4...10 mm, 4-core).
  • Power consumption during operation: 3.5 W; in standby: 1.4 W; for cable sizing: 6 VA.
  • IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

In analogue operation, output U provides the position signal. During operation via MP-Bus, connection U functions as a communication interface and does not provide an analogue measurement voltage.

  • Brand
    Belimo
  • Reference
    SM24A-MP-TP
  • EAN13
    7630498114441

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    3.5 W
  • Power consumption (holding)
    1.4 W
  • Rated power
    6 VA
  • Power supply control connection
    4 mm² terminals (ø4...10 mm cable, 4-core)
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Variable motor running time
    86...346 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    20 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 10...20 mm
