Belimo 22ADP-15Q - air differential pressure sensor

Belimo 22ADP-15Q - air differential pressure sensor

Belimo
zł975.08
VAT included
zł792.75 tax excluded

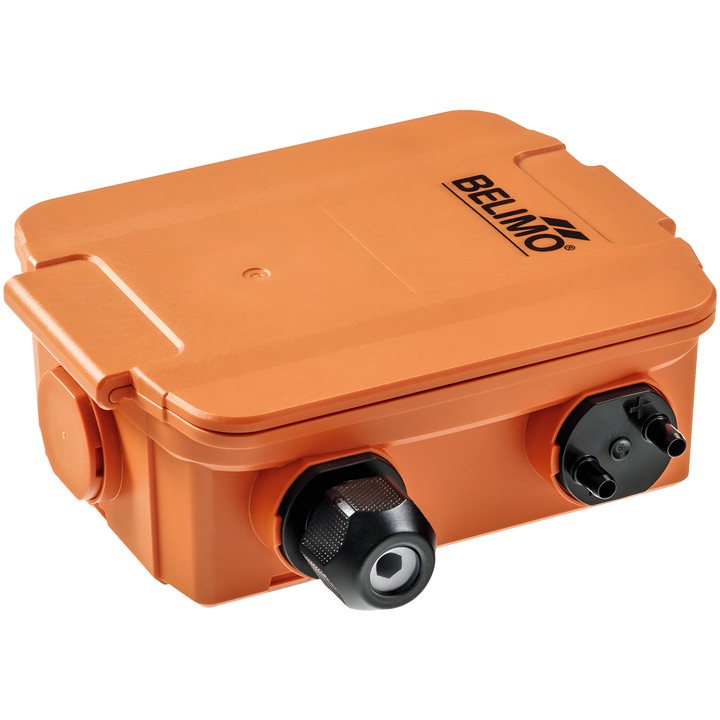

Belimo 22ADP-15Q air differential pressure sensor with a measuring range of -150...250 Pa. Measures differential pressure and volumetric flow; supports Modbus RTU and 0...5 V and 0...10 V outputs.

AC/DC 24 V supply, 8 selectable measuring ranges and IP65 / NEMA 4X protection rating.

Delivery in approx. 14 days
Share

Belimo 22ADP-15Q

Air differential pressure sensor for monitoring positive pressure, negative pressure or differential pressure in air and other non-flammable, non-aggressive gases. In HVAC installations, it can be used to monitor air filters and fan V-belts, as well as in differential pressure systems.

Key features

  • Pressure measuring range: -150...250 Pa (-0.6...1 inch WC); 8 selectable measuring ranges.
  • Measured values: differential pressure and volumetric flow.
  • Communication: Modbus RTU; two voltage outputs, 0...5 V or 0...10 V, min. resistance 10 kΩ. The 0...5/10 V signal is selected by a switch.
  • Rated voltage: AC/DC 24 V.
  • Electrical connection: detachable spring terminal block, max. 2.5 mm².
  • Protection rating: IP65 / NEMA 4X.
  • Included: mounting plate, 2 plastic duct connectors, 2 m PVC tube and mounting hardware.

  • Brand
    Belimo
  • Reference
    22ADP-15Q
  • EAN13
    7630498100871

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure Volume flow
  • Output signal
    Modbus 0...5 V 0...10 V
  • Pressure measuring range
    -150...250 Pa | -0.6...1 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Output voltage range [Range]
    2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Communication
    Modbus RTU

Techniczna karta katalogowa

Download (3.69MB)

Instrukcja montażu

Download (1.56MB)

Techniczna karta katalogowa – 22ADP-15Q..

Download (3.69MB)

EU Declaration of Conformity – 22ADP-15Q

Download (39.78KB)

Environmental Declaration – 22ADP..

Download (72.07KB)
