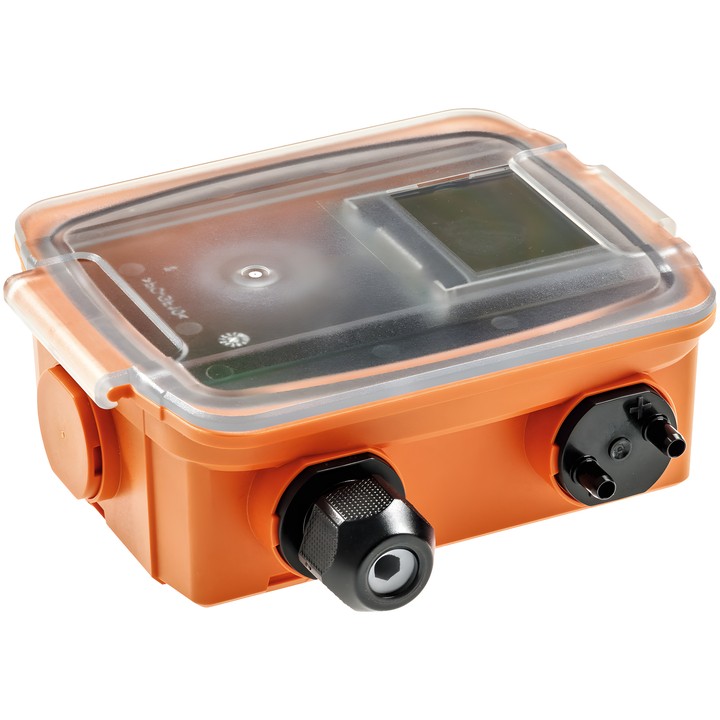

Belimo 22ADP-18QB air differential pressure sensor with a measuring range of -150...250 Pa. Equipped with an LCD and Auto-Zero function; it allows selection of one of 8 measuring ranges.

AC/DC 24 V supply. Outputs: 0...5 V, 0...10 V or 4...20 mA.

Delivery in approx. 14 days
Share

Belimo 22ADP-18QB air differential pressure sensor

The device measures the differential pressure of air and other non-aggressive gases. It is designed for stationary heating, ventilation and air conditioning systems. The LCD displays measured values, while the Auto-Zero function automatically corrects the zero point.

Key features and technical data

  • Measuring range: -150...250 Pa; 8 selectable measuring ranges.
  • Nominal supply: AC/DC 24 V.
  • Voltage output: 1 x 0...5 V, 0...10 V, min. resistance 10 kΩ; select 0...5/10 V using the switch.
  • Current output: 1x 4...20 mA, max. resistance 500 Ω. When the voltage output is switched from 0...10 V to 0...5 V, the current range changes from 4...20 mA to 4...12 mA.
  • Display: LCD, 29x35 mm, backlit; readings in Pa or inch WC.
  • Auto-Zero: automatic zero-point correction every 10 minutes.
  • Typical response time: adjustable, 0.8 s or 4.0 s.
  • Protection rating: IP65 / NEMA 4X.
  • Electrical connection: removable terminal block with spring terminals, max. 2.5 mm².
  • Burst pressure: 40 kPa.

Included items

Mounting plate A-22D-A10, kit A-22AP-A08 comprising a 2 m PVC tube and 2 plastic duct connectors, as well as wall plugs and screws.

  • Brand
    Belimo
  • Reference
    22ADP-18QB
  • EAN13
    7630498100987

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure
  • Output signal
    0...5 V 0...10 V 4...20 mA
  • Pressure measuring range
    -150...250 Pa | -0.6...1 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Display type
    LCD
  • Output voltage range [Range]
    1 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Current output power [Range]
    1x 4...20 mA, max. resistance 500 Ω

Techniczna karta katalogowa

Download (3.56MB)

Instrukcja montażu

Download (993.72KB)

Techniczna karta katalogowa – 22ADP-18Q..

Download (3.56MB)

EU Declaration of Conformity – 22ADP-18QB

Download (39.81KB)

Environmental Declaration – 22ADP..

Download (72.08KB)
